Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4451759 Vent, Exhaust Special Order $ 90.01

2 4455178 Elbow, Vent-top   (Replaces: 4451438) Special Order $ 13.30

3 WP3400015 Screw (1)   (Replaces: 3400015) Special Order $ 6.47

3 4452811 Blower 60mm Special Order $ 280.60

3 WP4449809 Screw (4)   (Replaces: 4449809) In-Stock Immediately $ 6.47

4 4455177 Elbow, Vent Bottom   (Replaces: 4451752) Special Order $ 9.77

5 WP9760588 Transformer, Light   (Replaces: 6610122) Special Order $ 237.07

6 8300642 Transformer, Control Appelez-nous -
7 WP4449809 Screw, 8-18 X 3/8   (Replaces: 4449809) In-Stock Immediately $ 6.47

8 WP4455352 Bracket, Blower   (Replaces: 4455352) Special Order $ 32.15

11 WP8203546 Block, Terminal   (Replaces: 4449868) In-Stock Immediately $ 27.12

14 4452442 Side, Control Top Appelez-nous -
21 W10491987 Seal, Foam   (Replaces: 4451758) In-Stock Immediately $ 6.98

22 W10145009 Deflector, Vent Box   (Replaces: 4452489) Special Order $ 69.95

23 4452441 Bracket, Control Mounting Appelez-nous -
24 4452444 Control, Zodiac Special Order $ 266.41

25 WP4451985 Suppressor   (Replaces: 4451985) Special Order $ 148.69

25 W11684512 Screw (4)   (Replaces: 3400080) Special Order $ 12.69

26 4453207 Insulator, Control Board Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

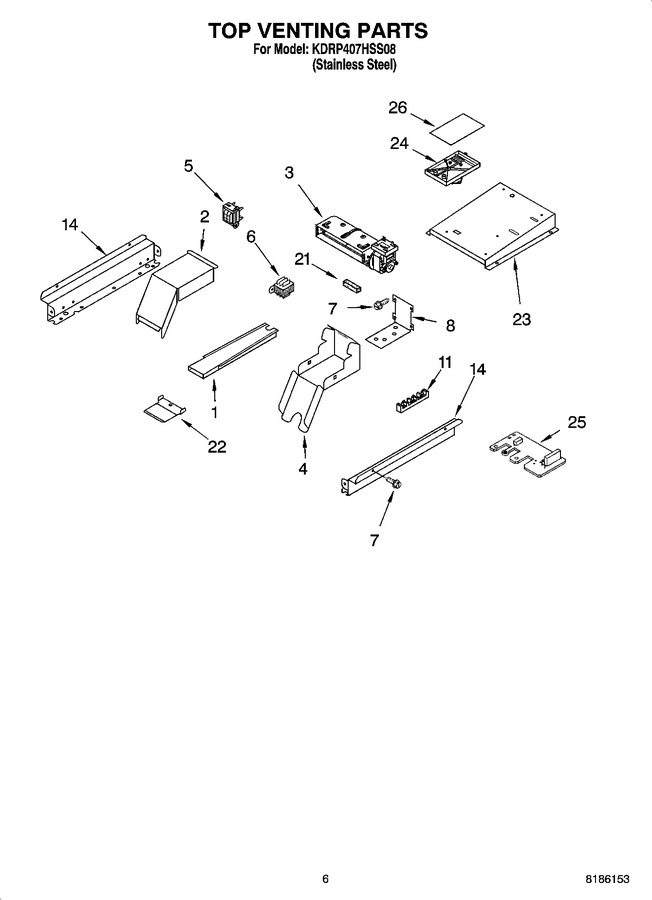

Diagram for KDRP407HSS08
