SELECT A DIAGRAM

Diagram for 01 - Oven Parts
01 - Oven Parts

Diagram for 02 - Oven Door Parts
02 - Oven Door Parts

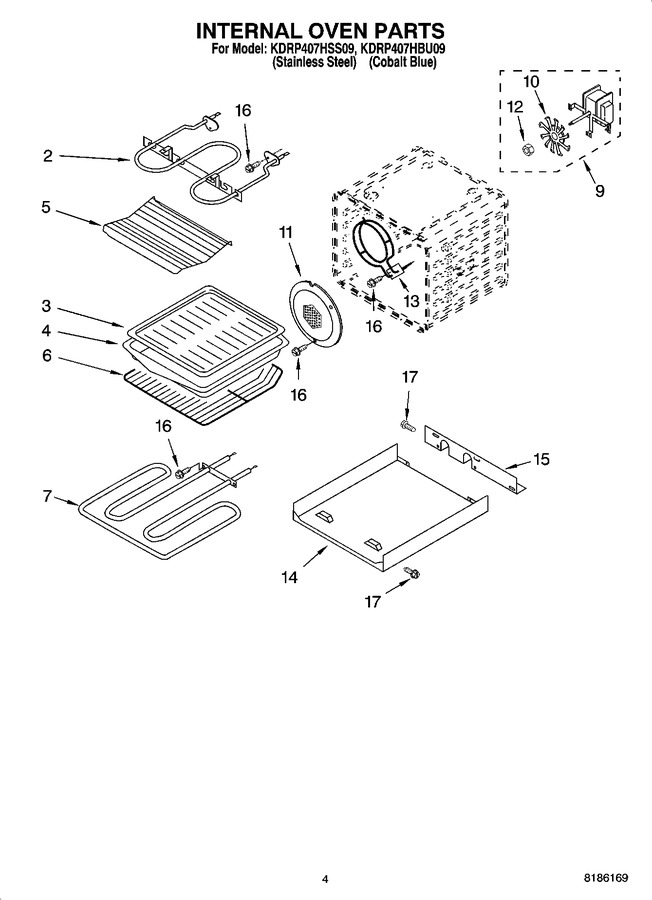

Diagram for 03 - Internal Oven Parts
03 - Internal Oven Parts

Diagram for 04 - Control Panel Parts
04 - Control Panel Parts

Diagram for 05 - Top Venting Parts
05 - Top Venting Parts

Diagram for 06 - Cooktop Parts
06 - Cooktop Parts

Diagram for 07 - Burner Box And Manifold Parts
07 - Burner Box And Manifold Parts

Diagram for 08 - Chassis Parts, Optional Parts
08 - Chassis Parts, Optional Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 WP9760771 Element, Broil   (Replaces: 4456103) In-Stock Immediately $ 104.77

2 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80

3 WP3195996 Grill, Broiler   (Replaces: 3195996) Special Order $ 82.63

4 WP3196076 Pan, Broiler   (Replaces: 3196076) Special Order $ 279.38

5 3181534 Rack, Roasting Appelez-nous -
6 4452807 Rack, Oven Appelez-nous -
7 4451175 Element, Hidden Bake   (Replaces: 4452155) In-Stock Immediately $ 126.84

9 4451583 Motor Convection Special Order $ 140.53

10 4452226 Blade, Fan Special Order $ 30.89

11 WPW10160821 Cover, Fan   (Replaces: 4448418) Special Order $ 244.79

12 4452227 Nut Special Order $ 33.98

13 WP9760769 Element, Convection   (Replaces: 4452157) In-Stock Immediately $ 289.61

14 4455037 Tray, Hidden Bake Special Order $ 73.11

15 4450039 Cover, Access Special Order $ 78.95

16 WP4449154 Screw, 8-32 X .440   (Replaces: 4449154) Special Order $ 6.80

17 WP4449809 Screw, 8-18 X 3/8   (Replaces: 4449809) In-Stock Immediately $ 6.47


    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for KDRP407HSS09
