New Model Search:

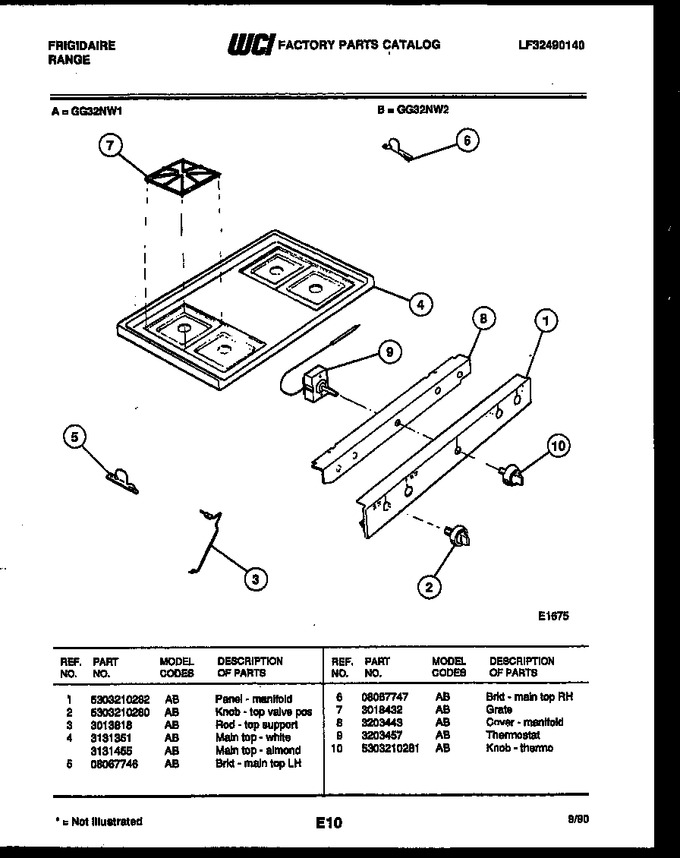

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210282 | Panel, Manifold |
|
- | |||||
| 2 | 5303210280 | Knob - Top Valve Pos |
|
- | |||||
| 3 | 3013818 | Rod, Top Support |
|
- | |||||
| 4 | 3131351 | Main Top,white |
|
- | |||||
| 5 | 08067746 | Brkt, Main Top (lh) |
|
- | |||||
| 6 | 08067747 | Brkt, Main Top (rh) |
|
- | |||||
| 7 | 3018432 | Grate |
|
- | |||||
| 8 | 3203443 | Cover-manifold |
|
- | |||||
| 9 | 3203457 | Thermostat |
|
- | |||||
| 10 | 5303210281 | Knob, Thermo |
|
- |
