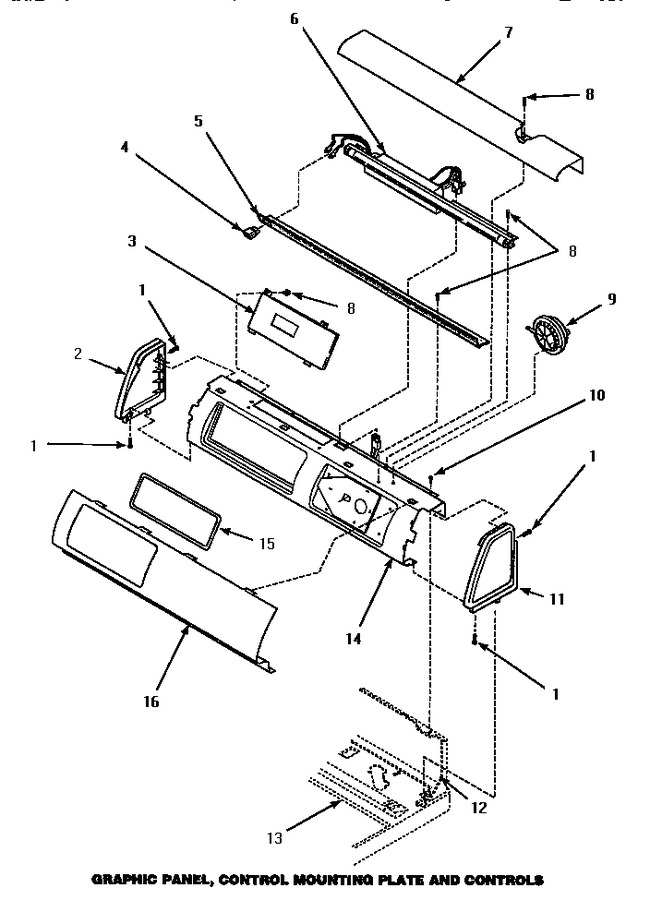

08 - Graphic Panel, Ctrl Mtg Plate & Ctrls


09 - Inlet/fill Hose & Mixing Vlv Mtg Brkt


10 - Mixing Valve Assy


11 - Mixing Vlv & Mtr Conn Blocks/term & Tool


12 - Motor, Mtg Brkt, Belt, Pump & Idler Assy


13 - Outer Tub, Cover & Pressure Hose


14 - Out-of-balance Switch


15 - Power Cord & Terminals


16 - Special Tools


17 - Special Tools


18 - Transmission Assy & Balance Ring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)			Immediately	$ 7.04
2	D504009WP		Panel,end-lh   (Replaces: 34818W)			Immediately	$ 22.20
3	35366W		Electronic Control		Appelez-nous	-
4	35038		Switch/ White		Appelez-nous	-
5	34829		Diffuser,lamp-clear		Appelez-nous	-
6	34837		Bulb,fluorescent		Appelez-nous	-
6	34836		Assy,fluorescent Light		Appelez-nous	-
6	34841		Starter,fluorescent		Appelez-nous	-
7	34824W		Cover, Top (computor)		Appelez-nous	-
8	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
9	36136		Pressure Switch		Appelez-nous	-
10	W11233072		Screw,8-18 X 3/8 Phil Pan Hd   (Replaces: 34904)			Immediately	$ 12.62
11	D504008WP		Panel,end-rh   (Replaces: 34817W)				$ 19.23
12	Y00000000		See Note Control Hood Rear Panel		Appelez-nous	-
13	Y00000000		See Note Cabinet Top		Appelez-nous	-
14	34822		No Longer Available		Appelez-nous	-
15	35114		Gasket,electronic Control		Appelez-nous	-
16	35312W		Panel,graphic-amana		Appelez-nous	-
	NOTE:		Outer Tub Cover And Gasket Tool Is For Removal Of 36025 Outer Tub Cover From Outer Tub And Installation Of 32857 Gasket In Outer Tub Cover.		Appelez-nous	-
