Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 WP9760771 Element, Broil   (Replaces: 4456103) In-Stock Immediately $ 104.77

2 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80

3 WP3195996 Grill, Broiler   (Replaces: 4457277) Special Order $ 82.63

4 WP3196076 Pan, Broiler   (Replaces: 4457276) Special Order $ 279.38

5 3181534 Rack, Roasting Appelez-nous -
6 4452807 Rack, Oven Appelez-nous -
7 4451175 Element, Hidden Bake   (Replaces: 4452155) In-Stock Immediately $ 126.84

9 4451583 Motor Convection Special Order $ 140.53

10 4452226 Blade, Fan Special Order $ 30.89

11 WPW10160821 Cover, Fan   (Replaces: 4448418) Special Order $ 244.79

12 4452227 Nut Special Order $ 33.98

13 WP9760769 Element, Convection   (Replaces: 4452157) In-Stock Immediately $ 289.61

14 4455037 Tray, Hidden Bake Special Order $ 73.11

15 4450039 Cover, Access Special Order $ 78.95

16 WP4449154 Screw, 8-32 X .440   (Replaces: 4449154) Special Order $ 6.80

17 WP4449809 Screw, 8-18 X 3/8   (Replaces: 4449809) In-Stock Immediately $ 6.47

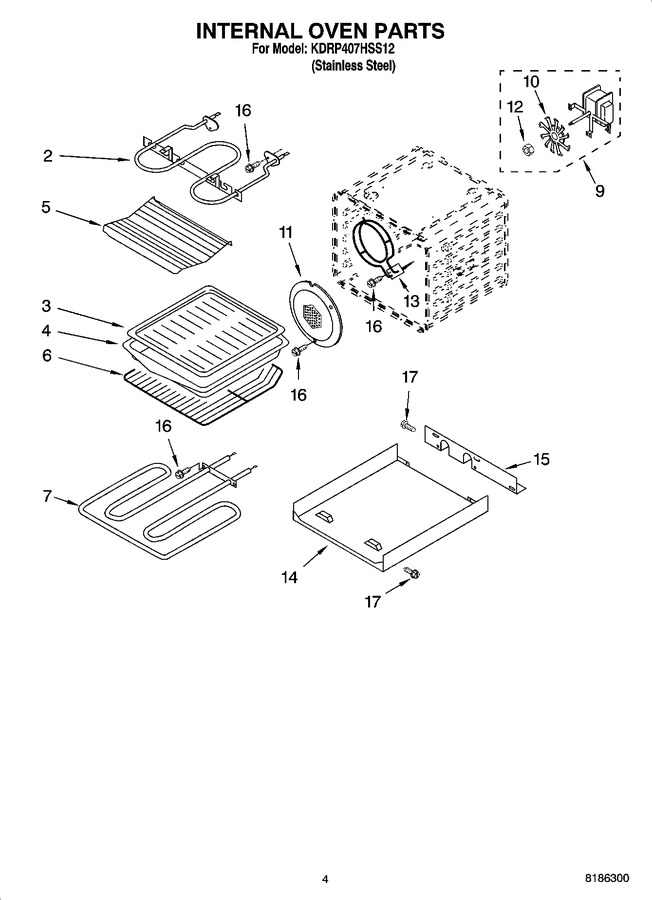

    View Diagram in Separate Window     Print Icon   Print Part List
