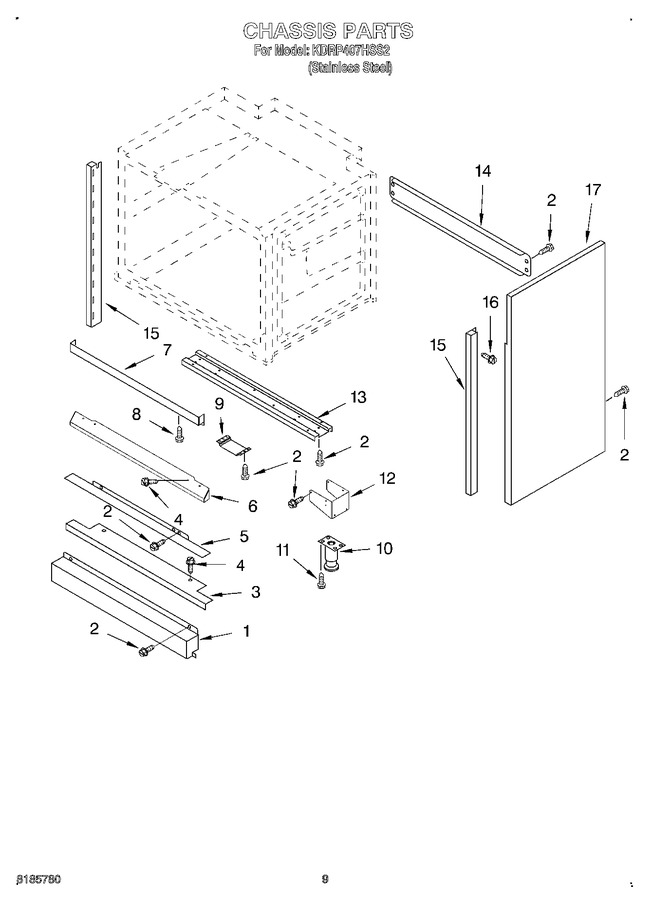

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4452802		Vent, Bottom Lower		Appelez-nous	-
2	WP4449809		Screw, 8-18 X 3/8   (Replaces: 4449809)			Immediately	$ 6.47
3	4452798		Backer, Trim Lower		Appelez-nous	-
4	WP3400805		Screw, 8-18 X 3/8   (Replaces: 3400837)				$ 6.47
5	4452800		Deflector, Center		Appelez-nous	-
6	4452420		Vent, Bottom Upper		Appelez-nous	-
7	4452425		Vent, Center		Appelez-nous	-
7	4453323		Gasket		Appelez-nous	-
8	WP3196557		Screw, 8-18 X 3/8   (Replaces: 3196537)			Immediately	$ 7.16
9	4455604		Bracket, Mounting Regulator		Appelez-nous	-
10	4452430		Foot Assembly		Appelez-nous	-
11	3400518		Screw, 5/16-12 X 5/8				$ 11.68
12	4455644		Gusset		Appelez-nous	-
13	4455643		Support, Channel		Appelez-nous	-
14	4452433		Brace, Rear		Appelez-nous	-
15	4453205		Trim, Front (left Side)		Appelez-nous	-
15	4452804		Trim, Front (right Side)		Appelez-nous	-
16	WP3196557		Screw, 8-18 X 3/8   (Replaces: 3196537)			Immediately	$ 7.16
17	W10138103		Bracket, Anti-tip   (Replaces: 4453202)				$ 167.49
17	4452222		Spacer, Harness		Appelez-nous	-
17	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
17	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
17	4453192		Seal, Ribbon Cable		Appelez-nous	-
17	4453191		Seal, Access Panel		Appelez-nous	-
17	814381		Pin Hinge Kit				$ 7.73
17	4455353		Spud Kit		Appelez-nous	-
17	W10138103		Bracket, Anti-tip   (Replaces: 4453141)				$ 167.49
17	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
17	4452418		Side Chassis (right Side)		Appelez-nous	-
17	4452419		Side Chassis (left Side)		Appelez-nous	-
17	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
17	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
17	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
17	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
17	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
17	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
17	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
17	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
17	242831		Wire (14 Ga. 200 C Red)				$ 342.23
17	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
17	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
17	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
17	WP4448444		Grommet, Rail   (Replaces: 4448444)				$ 6.73
17	4455742		Harness, Wire (main)		Appelez-nous	-
17	4455642		Harness, Wire (spark Module)		Appelez-nous	-
17	4453003		Harness, Wire (ignitor 39``)		Appelez-nous	-
17	3192230		Harness, Wire Ignitor (28``)		Appelez-nous	-
17	3191506		Bushing, Conduit		Appelez-nous	-
17	1129449		Bushing		Appelez-nous	-
17	WP4450952		Conduit   (Replaces: 4450952)				$ 206.55
17	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
17	WP112432		Nut   (Replaces: 112432)				$ 7.16
17	4450800		Screw, Ground				$ 11.55
17	WPW10339879		Tie, Cable   (Replaces: 4454835)				$ 7.11
