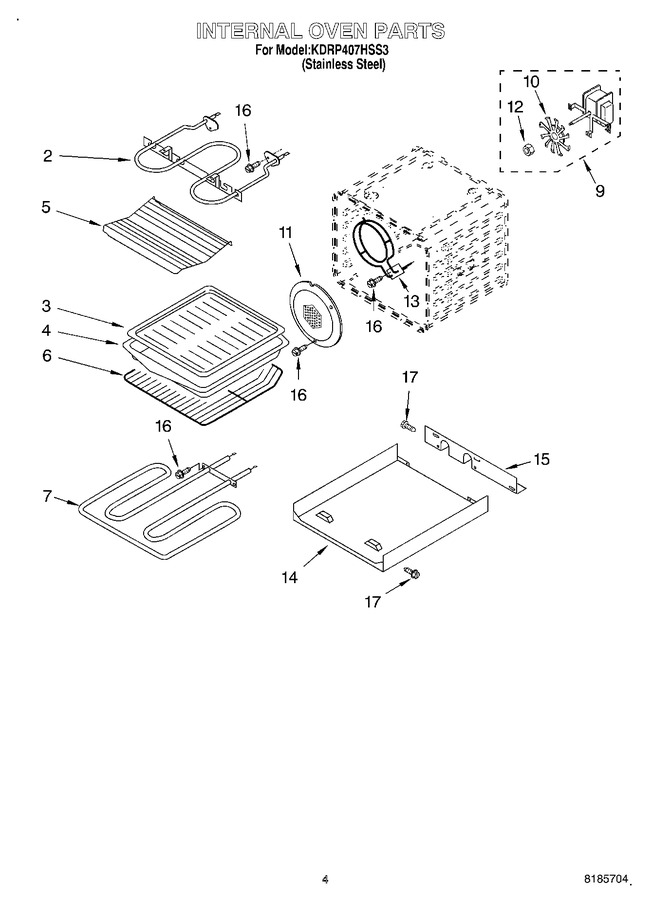

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Oven, Literature
02 - Oven Door
03 - Internal Oven
04 - Control Panel
05 - Top Venting
06 - Cooktop
07 - Burner Box And Manifold
08 - Chassis, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP9760767 | Element, Broil (Replaces: 4452154) |
|
Immediately | $ 147.74 | ||||
| 2 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 3 | 4396923 | Grill, Broiler (Replaces: 3147563) |
|
Immediately | $ 52.04 | ||||
| 4 | 4396923 | Pan, Broiler (Replaces: 3147845) |
|
Immediately | $ 52.04 | ||||
| 5 | 3181534 | Rack, Roasting |
|
- | |||||
| 6 | 4452807 | Rack, Oven |
|
- | |||||
| 7 | 4451175 | Element, Hidden Bake (Replaces: 4452155) |
|
Immediately | $ 126.84 | ||||
| 9 | 4451583 | Motor Convection |
|
$ 140.53 | |||||
| 10 | 4452226 | Blade, Fan |
|
$ 30.89 | |||||
| 11 | WPW10160821 | Cover, Fan (Replaces: 4448418) |
|
$ 244.79 | |||||
| 12 | 4452227 | Nut |
|
$ 33.98 | |||||
| 13 | WP9760769 | Element, Convection (Replaces: 4452157) |
|
Immediately | $ 289.61 | ||||
| 14 | 4455037 | Tray, Hidden Bake |
|
$ 73.11 | |||||
| 15 | 4450039 | Cover, Access |
|
$ 78.95 | |||||
| 16 | WP4449154 | Screw, 8-32 X .440 (Replaces: 4449154) |
|
$ 6.80 | |||||
| 17 | WP4449809 | Screw, 8-18 X 3/8 (Replaces: 4449809) |
|
Immediately | $ 6.47 |
