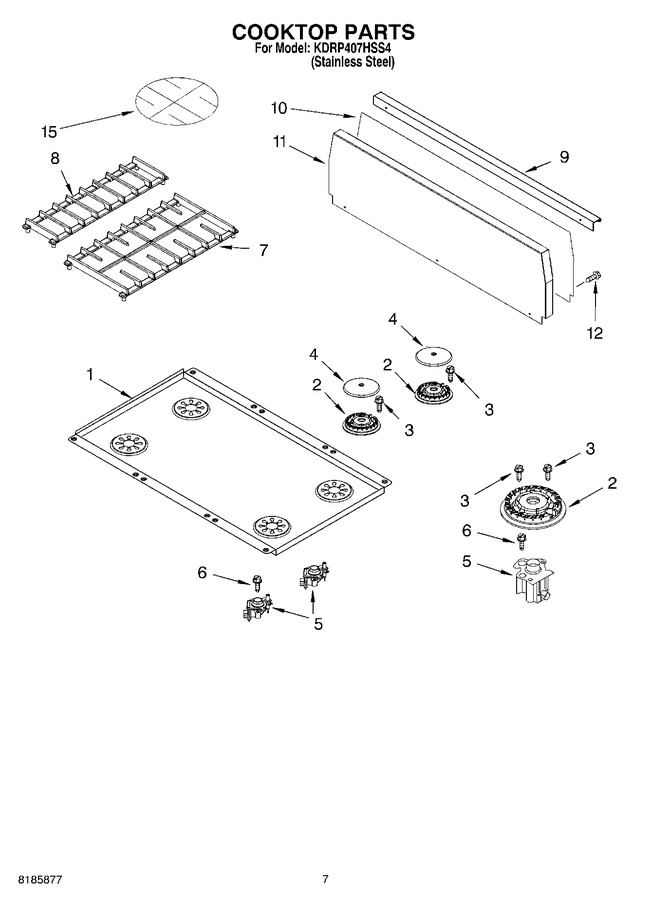

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4455032		Cooktop		Appelez-nous	-
2	4455849		Burner Head				$ 47.68
3	WP3368921		Screw, 7-18 X 3/4   (Replaces: 3368921)			Immediately	$ 6.42
4	4455243		Cap, Burner				$ 41.37
5	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 7.15
5	9754188		Orifice Holder (includes Orific & Ignitor)				$ 48.21
6	WP3177991		Screw, 8-18 X 1/4   (Replaces: 3177991)			Immediately	$ 6.47
7	4454963		Grate, Burner		Appelez-nous	-
8	4454964		Grate, Filler		Appelez-nous	-
9	4454961		Trim, Island		Appelez-nous	-
10	4455031		Support, Backsplash		Appelez-nous	-
11	4454959		Trim, Backsplash		Appelez-nous	-
12	WP3400805		Screw, 8-18 X 3/8   (Replaces: 3400837)				$ 6.47
15	4455109		Plate, Simmer				$ 52.31
