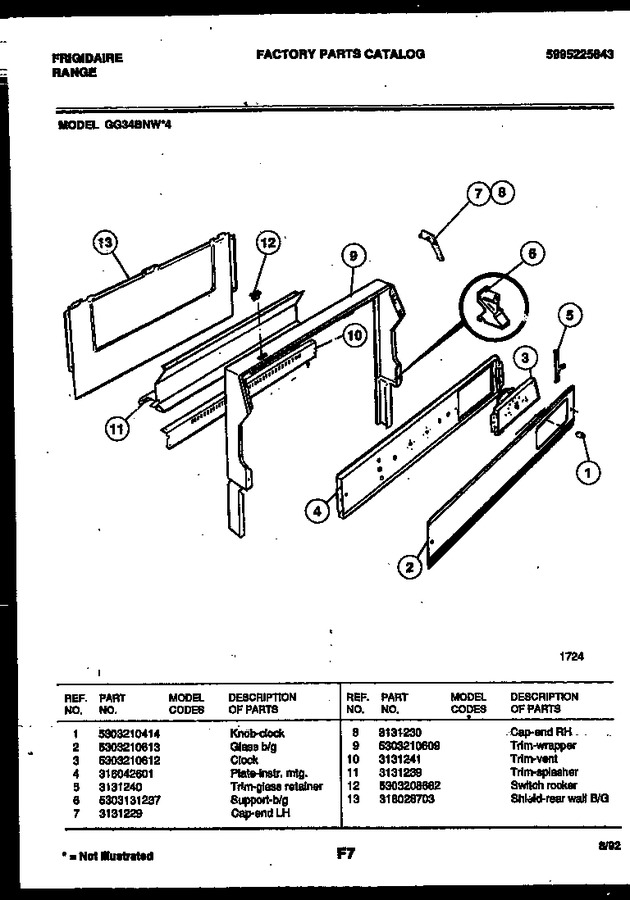

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Broiler Drawer Parts
05 - Door Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210414 | Knob, Clock |
|
- | |||||
| 2 | 5303210613 | Glass B/g |
|
- | |||||
| 3 | 5303210612 | Clock |
|
- | |||||
| 4 | 3106042601 | Plate-instr. Mtg. |
|
- | |||||
| 5 | 3131240 | Trim-glass Retainer |
|
- | |||||
| 6 | 5303131237 | Support-b/g |
|
- | |||||
| 7 | 3131229 | Cap, End (lh) |
|
- | |||||
| 8 | 3131230 | Cap, End (rh) |
|
- | |||||
| 9 | 5303210609 | Trim, Wrapper |
|
- | |||||
| 10 | 3131241 | Trim-vent |
|
- | |||||
| 11 | 3131239 | Trim Splasher |
|
- | |||||
| 12 | 5303208662 | Switch-rocker |
|
- | |||||
| 13 | 316028703 | Shield-rear Wall B/g |
|
- |
