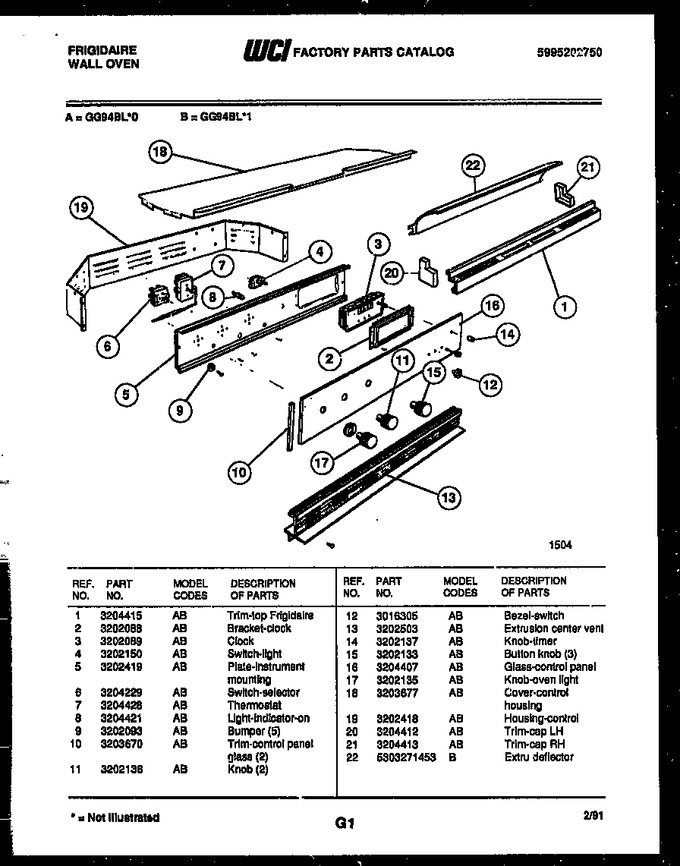

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204415 | Trim-top Frigidaire |
|
- | |||||
| 2 | 3202088 | Bracket-clock |
|
- | |||||
| 3 | 3202089 | Clock |
|
- | |||||
| 4 | 3202150 | Switch-light |
|
- | |||||
| 5 | 3202419 | Plate-instrument Mounting |
|
- | |||||
| 6 | 3204220 | Switch-selector |
|
- | |||||
| 7 | 3204428 | Thermostat |
|
- | |||||
| 8 | 3204421 | Light-indicator-on |
|
- | |||||
| 9 | 3202093 | Bumper (5) |
|
- | |||||
| 10 | 3203670 | Trim-control Panel Glass (2) |
|
- | |||||
| 11 | 3202136 | Knob (2) |
|
$ 167.04 | |||||
| 12 | 3016305 | Bezel-switch |
|
- | |||||
| 13 | 3202503 | Extrusion Center Vent |
|
- | |||||
| 14 | 3202137 | Knob, Timer |
|
- | |||||
| 15 | 3202133 | Button Knob (3) |
|
- | |||||
| 16 | 3204407 | Glass-control Panel |
|
- | |||||
| 17 | 3202135 | Knob-oven Light |
|
$ 48.67 | |||||
| 18 | 3203677 | Cover-control Housing |
|
- | |||||
| 19 | 3202418 | Housing-control |
|
- | |||||
| 20 | 3204412 | Trim-cap Lh |
|
- | |||||
| 21 | 3204413 | Trim-cap Rh |
|
- | |||||
| 22 | 5303271453 | Extru Deflector |
|
- |
