01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts


06 - Cooktop Parts


07 - Burner Box And Manifold Parts


08 - Chassis Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

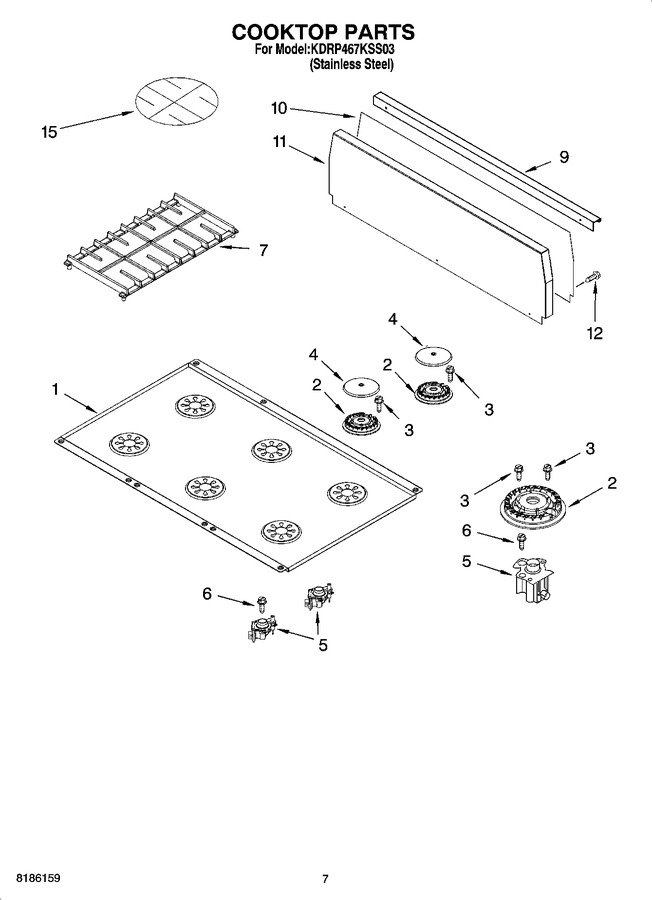

1	4456865		Cooktop		Appelez-nous	-
2	4455849		Burner Head (turbi)				$ 47.68
2	4455979		Burner Head (auxi)				$ 28.52
3	WP3368921		Screw, 7-18 X 3/4   (Replaces: 3368921)			Immediately	$ 6.42
4	4455243		Cap, Burner ((14k))				$ 41.37
4	WP8284669		Cap, Burner ((6k))   (Replaces: 8284669)			Immediately	$ 64.79
5	9754182		Orifice Holder (auxi (includes Orific & Ignitor))		Appelez-nous	-
5	9754188		Orifice Holder (turbi)				$ 48.21
5	WP12990527		Orifice Holder (screw)   (Replaces: 3400843)			Immediately	$ 7.15
6	WP3177991		Screw, 8-18 X 1/4   (Replaces: 3177991)			Immediately	$ 6.47
7	4454963		Grate, Burner		Appelez-nous	-
9	4454962		Trim, Island		Appelez-nous	-
10	8284712		Support, Backsplash		Appelez-nous	-
11	4454960		Trim, Backsplash		Appelez-nous	-
12	WP3400805		Screw, 8-18 X 3/8   (Replaces: 3400837)				$ 6.47
15	4455109		Plate, Simmer				$ 52.31
