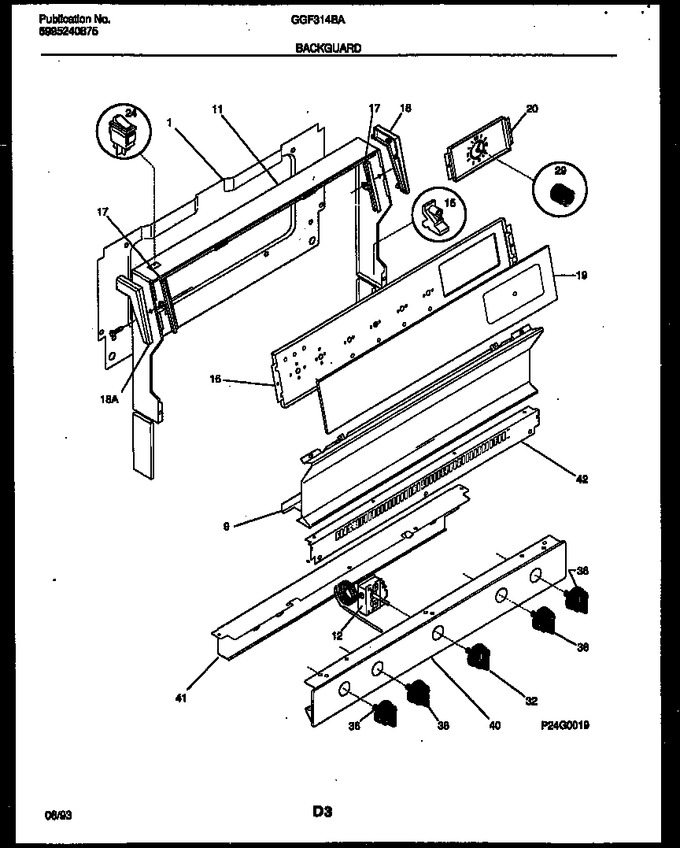

02 - Backguard
03 - Burner Parts
04 - Body Parts
05 - Cooktop And Broiler Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316028703 | Shield-backguard, Rear Wall |
|
- | |||||
| 9 | 316012501 | Trim-splasher, White |
|
- | |||||
| 11 | 5303210609 | Trim, Wrapper |
|
- | |||||
| 12 | 316032411 | Thermostat-oven (Replaces: 5303271464) |
|
Immediately | $ 165.14 | ||||
| 15 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 16 | 316042601 | Plate,instrument Mtg |
|
- | |||||
| 17 | 3131240 | Trim-glass Retainer, (2) |
|
- | |||||
| 18 | 3131230 | Cap, End (rh) |
|
- | |||||
| 19 | 5303212559 | Panel-control, Glass |
|
- | |||||
| 20 | 5303212519 | Clock/timer, Analog 1 Stem |
|
- | |||||
| 24 | 5303208662 | Switch-oven Light, Rocker |
|
- | |||||
| 29 | 3131472 | Knob-clock |
|
- | |||||
| 32 | 5303212558 | Knob-thermostat |
|
- | |||||
| 36 | 5303212557 | Knob-top Valve (4) |
|
- | |||||
| 40 | 5303212556 | Panel-manifold |
|
- | |||||
| 41 | 3203443 | Cover-manifold |
|
- | |||||
| 42 | 3131241 | Trim-vent |
|
- | |||||
| 18A | 3131229 | Cap, End (lh) |
|
- |
