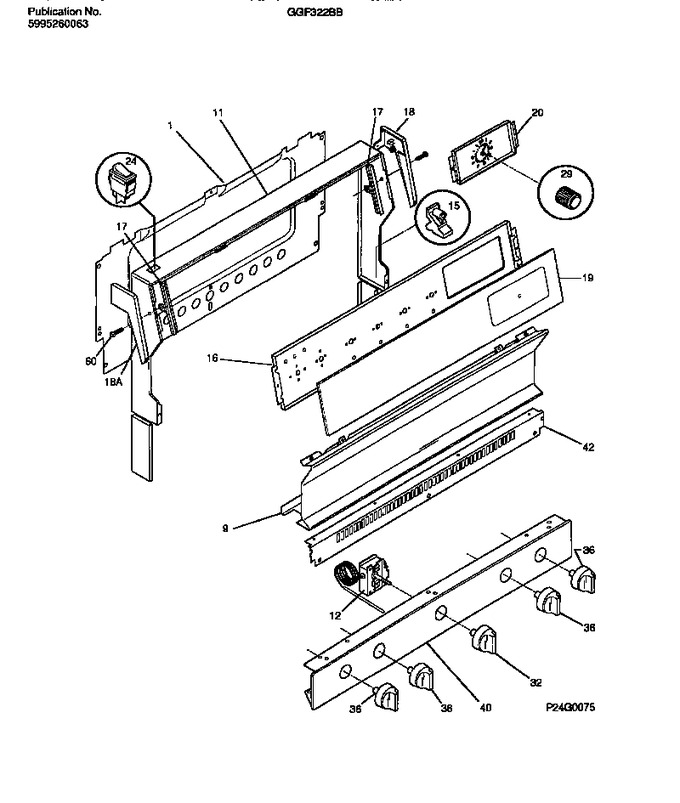

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028703		Sheild-backguard, Rear Wall		Appelez-nous	-
9	316012502		Trim-splasher, Almond		Appelez-nous	-
11	5303210609		Trim, Wrapper		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
17	3131240		Trim-glass Retainer, (2)		Appelez-nous	-
18	3131230		End Cap, Rh		Appelez-nous	-
19	5303212559		Panel-control, Glass		Appelez-nous	-
20	5303212519		Clock/timer, Analog 1 Stem		Appelez-nous	-
24	5308015487		Switch,oven Light ,rocker				$ 61.43
29	316029000		Knob-clock		Appelez-nous	-
32	5303212558		Knob-thermostat		Appelez-nous	-
36	316023006		Knob-top Valve, (4)		Appelez-nous	-
40	5303212556		Panel-manifold		Appelez-nous	-
42	3131241		Trim-vent		Appelez-nous	-
60	5303293427		Screw, 6, 20 X 1/2, 5 Oval Head		Appelez-nous	-
*71600	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
18A	3131229		End Cap, Lh		Appelez-nous	-
