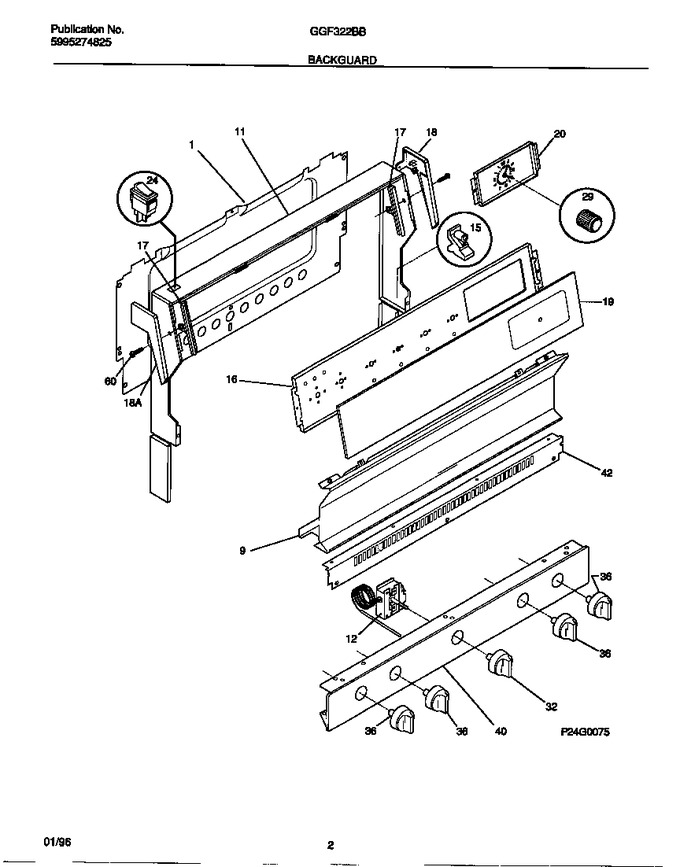

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316028703 | Shield-backguard, Rear Wall |
|
- | |||||
| 9 | 316012502 | Trim-splasher, Almond |
|
- | |||||
| 11 | 3131238 | Trim, Wrapper |
|
- | |||||
| 15 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 16 | 316042601 | Plate,instrument Mtg |
|
- | |||||
| 17 | 3131240 | Trim-glass Retainer, (2) |
|
- | |||||
| 18 | 3131229 | End Cap, Lh |
|
- | |||||
| 18 | 3131230 | End Cap, Rh |
|
- | |||||
| 19 | 5303212559 | Panel-control, Glass |
|
- | |||||
| 20 | 5303212519 | Clock/timer, Analog 1 Stem |
|
- | |||||
| 24 | 5304527841 | Switch-light/lamp, Rocker Type, Black (Replaces: 316005602) |
|
Immediately | $ 11.38 | ||||
| 29 | 316029000 | Knob-clock |
|
- | |||||
| 32 | 5303212558 | Knob-thermostat |
|
- | |||||
| 36 | 316023006 | Knob-top Valve, (4) |
|
- | |||||
| 40 | 5303212556 | Panel-manifold |
|
- | |||||
| 42 | 316084300 | Trim-vent |
|
- | |||||
| 60 | 316021109 | Screw,hex, 8-18 X 3/8, Back\bodyside (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| *65440 | 5303281584 | Screw, Truss Head, 8-18 X 1/2 |
|
- | |||||
| 12A | 316032411 | Thermostat-oven (Replaces: 5303271464) |
|
Immediately | $ 165.14 | ||||
| 12B | 5303291898 | Insulator-thermostat (not Illustrated) |
|
- |
