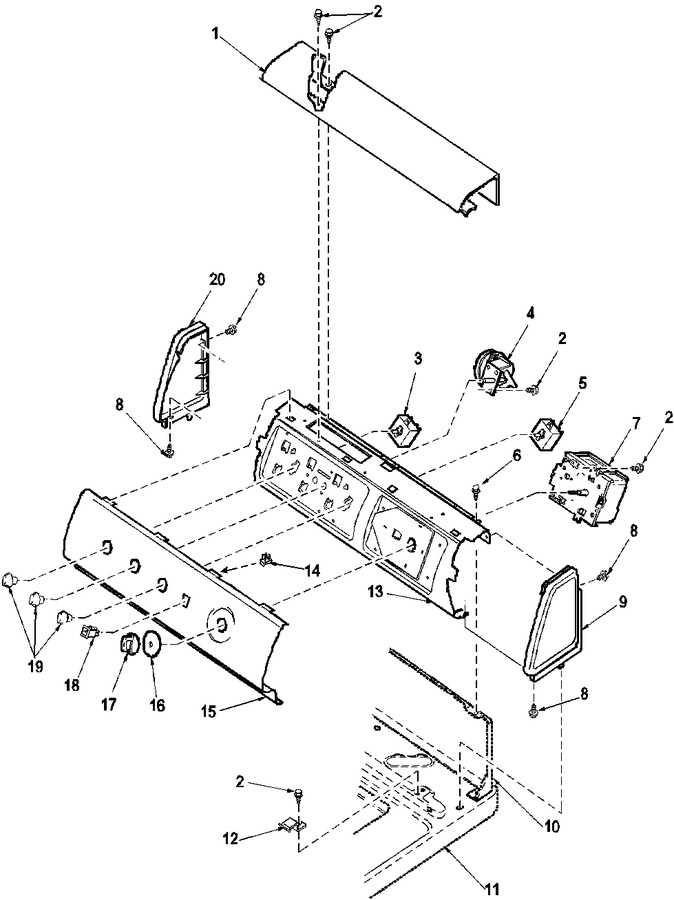

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 38231W | Cover, Top |
|
$ 25.60 | |||||
| 2 | WP90767 | Screw,8b-18 X 3/8 Ind (Replaces: 23962) |
|
Immediately | $ 7.04 | ||||
| 3 | 36335 | Temperature Switch |
|
$ 59.62 | |||||
| 4 | 201927P | Pressure Switch (Replaces: 36045) |
|
$ 85.88 | |||||
| 5 | 38367 | Action Switch |
|
- | |||||
| 6 | W11233072 | Screw,8-18 X 3/8 Phil Pan Hd (Replaces: 34904) |
|
Immediately | $ 12.62 | ||||
| 7 | 37922P | Timer, 115v/60hz 6 Cycl (Replaces: 37922) |
|
$ 396.05 | |||||
| 8 | WP90767 | Screw, 8b-18x3/8 Slt (Replaces: 501086) |
|
Immediately | $ 7.04 | ||||
| 9 | D504008WP | Cap-end Rh (Replaces: 504008W) |
|
$ 19.23 | |||||
| 10 | 37782 | Control Hood Back Panel |
|
$ 26.14 | |||||
| 11 | 37992WP | Top, Home W/bleach |
|
$ 250.25 | |||||
| 12 | 35887 | Hold-down Clip |
|
- | |||||
| 13 | 38171 | Panel, Control Support |
|
$ 46.87 | |||||
| 14 | Y00161 | Ground Clip |
|
- | |||||
| 15 | 39823W | Pnl, Graphic |
|
- | |||||
| 16 | 36700W | Knob Skirt |
|
$ 11.93 | |||||
| 17 | 201501W | Knob, Timer (Replaces: 35333W) |
|
Immediately | $ 16.52 | ||||
| 18 | 38424W | Switch, Rocker (wht) |
|
$ 8.73 | |||||
| 19 | WP36701W | Knob (white) (Replaces: 36701W) |
|
Immediately | $ 44.31 | ||||
| 20 | D504009WP | Cap-end Lh (Replaces: 504009W) |
|
Immediately | $ 22.20 |
