Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8300231 Tubing, Gas Burner - Rf Appelez-nous -
1 4455078 Tubing, Gas (30``) Appelez-nous -
1 8301938 Tubing, Gas (center Right) Appelez-nous -
2 8302040 Tubing, Gas Burner - Rr Appelez-nous -
3 8300187 Tubing, Gas Burner - Lf Appelez-nous -
4 8300188 Tubing, Gas Burner - Lr Appelez-nous -
7 4457207 Manifold Assembly Right Side Appelez-nous -
8 8523704 Valve, Burner (bolt (4)) Appelez-nous -
8 4456818 Valve, Burner (bronze) Special Order $ 231.30

8 WP4456816 Valve, Burner (red)   (Replaces: 4456816) In-Stock Immediately $ 286.55

10 4457318 Burner Switch & Harness Assembly Appelez-nous -
10 WP3188425 Seal, Switch   (Replaces: 3191387) Special Order $ 82.61

11 WP9759091 Regulator, Pressure   (Replaces: 9759091) In-Stock Immediately $ 291.80

12 4457205 Box, Burner Appelez-nous -
14 8301937 Tubing, Gas Burner - Cf Appelez-nous -
15 8285488 Side, Burner Box (left Side) Appelez-nous -
15 8285487 Side, Burner Box (right Side) Appelez-nous -
16 9759141 Support, Rear Appelez-nous -
17 9760561 Support, Cooktop (l.side) Appelez-nous -
17 9760560 Support, Cooktop (r.side) Appelez-nous -
18 3192811 Bracket, Burner Appelez-nous -
19 WP3177991 Screw, 8-18 X 1/4   (Replaces: 3177991) In-Stock Immediately $ 6.47

20 4454974 Rail, Support Rh & Lh Appelez-nous -
21 8302193 Tube, Manifold Appelez-nous -
22 8301579 Bracket, Control Panel Appelez-nous -
22 WP3177991 Screw   (Replaces: 3177991) In-Stock Immediately $ 6.47

23 WP4450118 Adapter (nut, 6-32 U Type)   (Replaces: 4450118) Special Order $ 7.16

23 4453116 Adapter (1/2`` Female) Special Order $ 153.80

23 4453115 Adapter (1/2`` Male) Special Order $ 108.60

24 9760562 Cover, Manifold Slot Appelez-nous -
25 WPW10110491 Module, Spark   (Replaces: 8522426) In-Stock Immediately $ 276.35

27 8301936 Tubing, Gas Burner - Cr Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

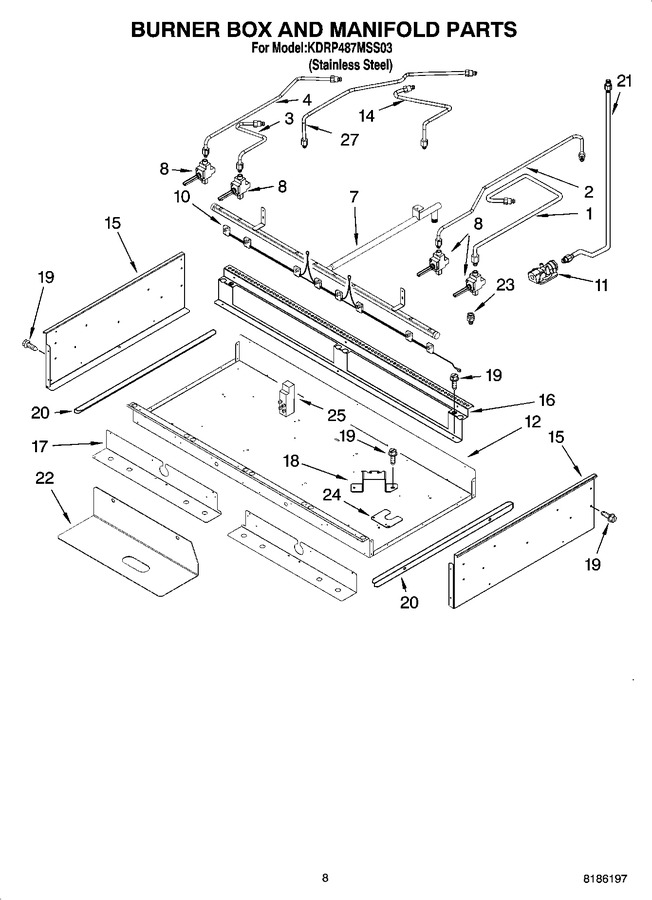

Diagram for KDRP487MSS03
