01 - Oven Parts

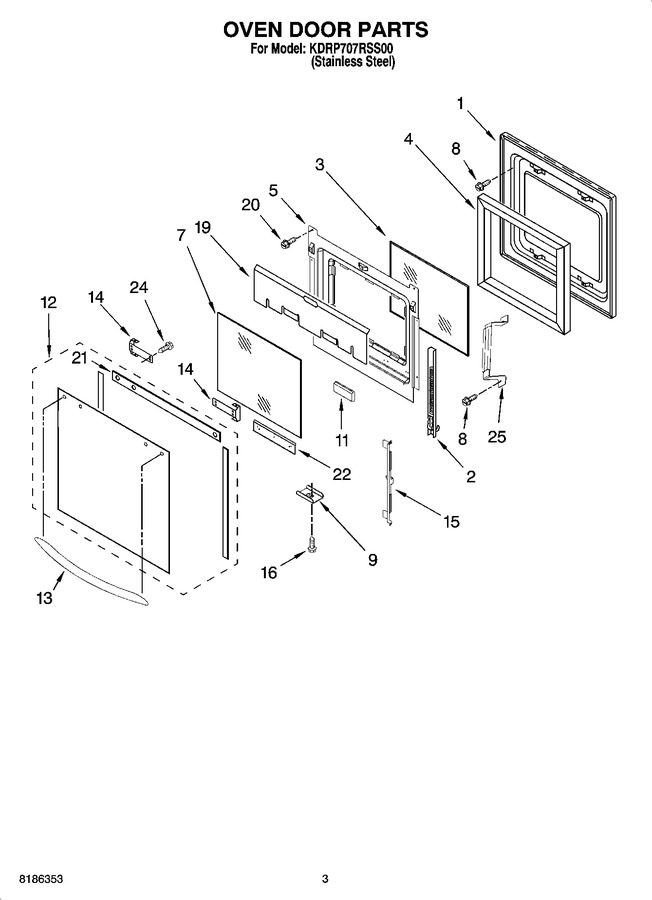

02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts


06 - Cooktop Parts


07 - Burner Box And Manifold Parts


08 - Chassis Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: 4455618)				$ 317.54
2	WP9760578		Hinge, Door (left)   (Replaces: 9760578)			Immediately	$ 98.96
2	WP9760577		Hinge, Door (r.side)   (Replaces: 8300577)			Immediately	$ 99.89
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 182.86
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 162.66
5	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 275.13
7	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 151.10
8	WP4449743		Screw, 8-32 X 3/8   (Replaces: 4449743)				$ 6.47
9	9759634		Retainer, Glass		Appelez-nous	-
11	9759635		Spacer, Glass				$ 36.09
12	W10401225		Assy, Door Glass   (Replaces: 4452316)				$ 289.44
13	4455851		Door Handle		Appelez-nous	-
14	4455803		Bracket, Handle (right Hand)				$ 30.70
14	4455804		Bracket, Handle (left Hand)				$ 25.95
15	WP9759229		Bracket (2nd Glass)   (Replaces: 8302092)				$ 160.71
16	WP3400832		Screw, 8-18 X 3/8   (Replaces: 3400832)			Immediately	$ 6.98
19	4457104		Shield, Heat Top   (Replaces: 4457103)				$ 33.62
20	WP4449809		Screw, 8-18 X 3/8   (Replaces: 4449809)			Immediately	$ 6.47
21	4452326		Seal, Door Top		Appelez-nous	-
22	4457114		Shield, Heat-bottom				$ 186.68
24	WPW10132940		Screw, 8-32 X .548   (Replaces: 3196184)				$ 8.50
25	8302094		Bracket (3rd Glass)		Appelez-nous	-
