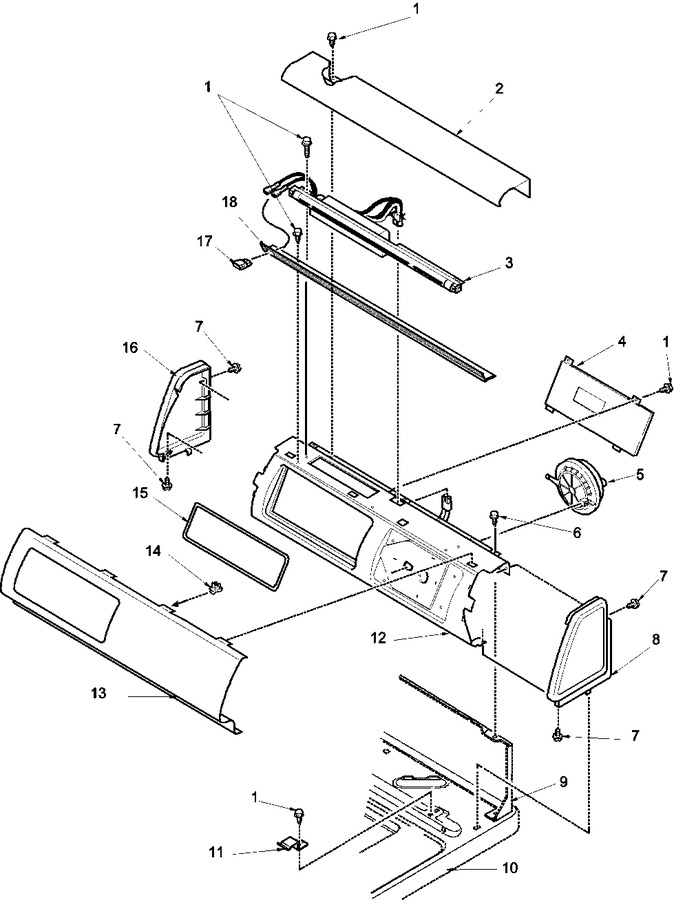

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw,8b-18 X 3/8 Ind (Replaces: 23962) |
|
Immediately | $ 7.04 | ||||
| 2 | 34824L | Cover, Top (almond) |
|
- | |||||
| 3 | 34836 | Assy,fluorescent Light |
|
- | |||||
| 4 | 38816L | Electronic Control |
|
- | |||||
| 5 | 36136 | Pressure Switch |
|
- | |||||
| 6 | W11233072 | Screw,8-18 X 3/8 Phil Pan Hd (Replaces: 34904) |
|
Immediately | $ 12.62 | ||||
| 7 | WP90767 | Screw, 8b-18x3/8 Slt (Replaces: 501086) |
|
Immediately | $ 7.04 | ||||
| 8 | 34817L | Panel,end-rh |
|
- | |||||
| 9 | 37782 | Control Hood Back Panel |
|
$ 26.14 | |||||
| 10 | 37992LP | Top, Home W/bleach |
|
- | |||||
| 11 | 35887 | Hold-down Clip |
|
- | |||||
| 12 | 34822 | No Longer Available |
|
- | |||||
| 13 | 35312L | Panel,graphic-amana |
|
- | |||||
| 14 | Y00161 | Ground Clip |
|
- | |||||
| 15 | 35114 | Gasket,electronic Control |
|
- | |||||
| 16 | 34818L | Panel,end-lh |
|
- | |||||
| 17 | 38424L | Switch, Rocker (bsq) |
|
$ 2.74 | |||||
| 18 | 34829 | Diffuser,lamp-clear |
|
- | |||||
| NI | 34837 | Bulb,fluorescent |
|
- | |||||
| NI | 34841 | Starter,fluorescent |
|
- |
