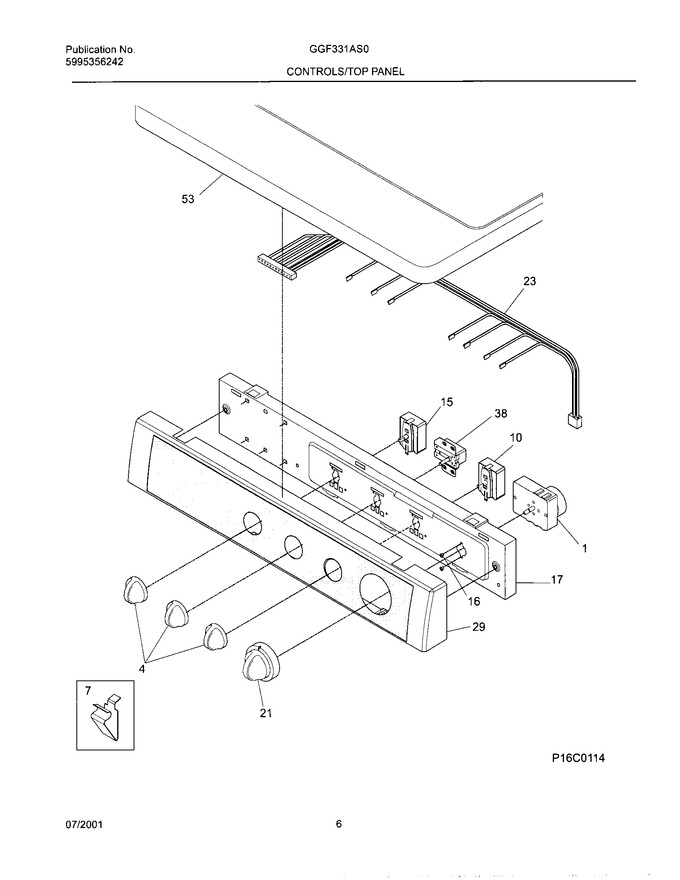

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131583801		Timer-dryer P Gas				$ 336.65
4	131965300		Knob-rot-dryer Wht/drk Gray			Immediately	$ 53.15
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
16	134034300		Screw, Cr Pan Hd, 8-32 X 0.250, Thrd Forming		Appelez-nous	-
17	131941000		Brkt-cont Mtg-stack Dryer		Appelez-nous	-
21	131873500		Asmy-knob/ind Wht/drk Gray Ft1			Immediately	$ 49.62
23	134057600		Harness Psh Gas Cont		Appelez-nous	-
29	131666936		Asmy-cons Frame/tape/trim		Appelez-nous	-
53	131601308		Panel-top White		Appelez-nous	-
F10	134398300		Switch-start   (Replaces: 131447800)			Immediately	$ 77.82
F15	131288900		Switch-temperature				$ 18.69
F38	131048300		Buzzer		Appelez-nous	-
NI	134006600		Harn-main Gas Stack				$ 277.78

    View Diagram in Separate Window       Print Part List
