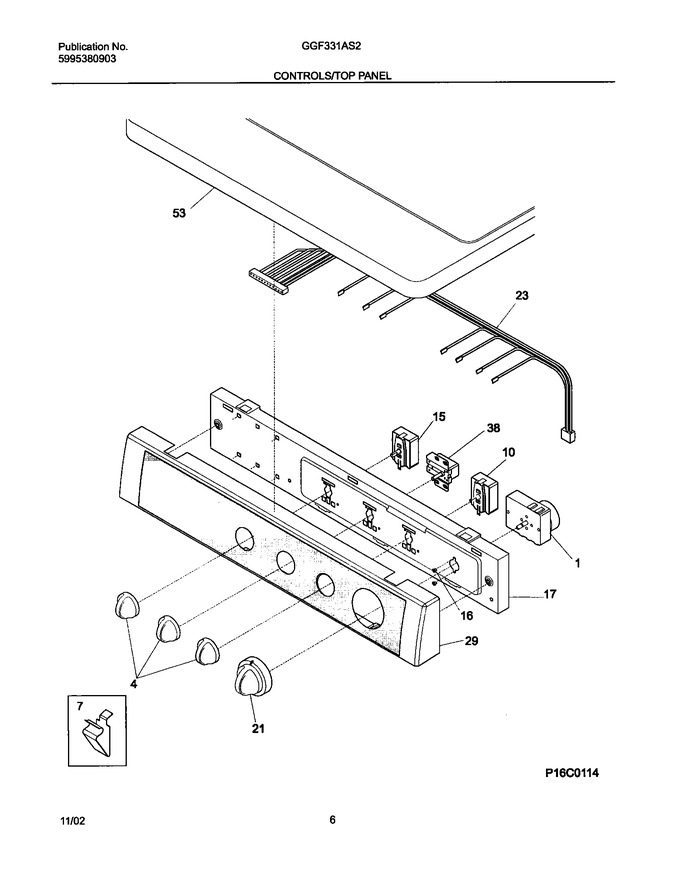

SELECT A DIAGRAM

01 - Cover


03 - Cabinet/drum


05 - Front Panel/lint Filter


07 - Controls/top Panel


09 - Motor


11 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131583801		Timer,dryer				$ 336.65
4	131965300		Knob,rotary ,white/gray			Immediately	$ 53.15
7	3205821		Clip,top-to-front			Immediately	$ 35.44
16	134034300		Screw,pan Hd Phillips ,8-18b X 0.250		Appelez-nous	-
17	134064501		Bracket,control Mtg.				$ 76.13
21	131873500		Knob,timer ,white/gray ,assy			Immediately	$ 49.62
23	134057600		Harness Psh Gas Cont		Appelez-nous	-
29	131666936		Console,frame ,white ,w/trim & Tape		Appelez-nous	-
53	134086812		Panel,dryer Top ,white ,stackable				$ 336.42
F10	134398300		Switch,start ,turn Type   (Replaces: 131447800)			Immediately	$ 77.82
F15	131288900		Switch-temperature				$ 18.69
F38	131048300		Buzzer		Appelez-nous	-
NI	134006600		Wiring Harness,main				$ 277.78

    View Diagram in Separate Window       Print Part List
