View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

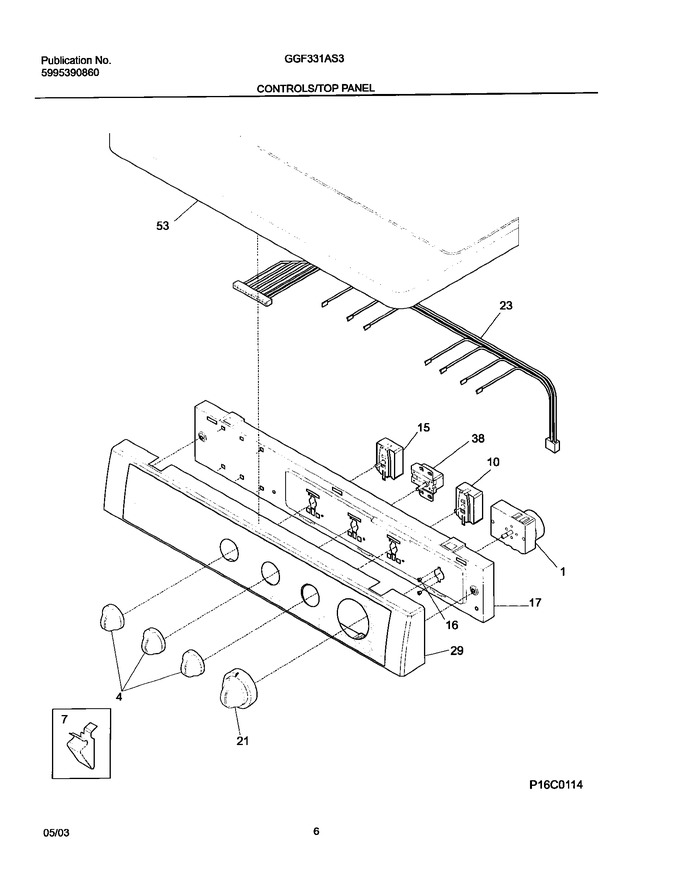

01 - Cover
03 - Cabinet
05 - Front
07 - Controls
09 - Motor
11 - Burner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131583801 | Timer,dryer ,3-off |
|
$ 336.65 | |||||
| 4 | 131965300 | Knob,rotary ,white/gray |
|
Immediately | $ 53.15 | ||||
| 7 | 3205821 | Clip,top-to-front |
|
Immediately | $ 35.44 | ||||
| 16 | 134034300 | Screw,pan Hd Phillips ,8-18b X 0.250 |
|
- | |||||
| 17 | 134064501 | Bracket,control Mtg. |
|
$ 76.13 | |||||
| 21 | 131873500 | Knob,timer ,white/gray ,assy |
|
Immediately | $ 49.62 | ||||
| 23 | 134057600 | Harness Psh Gas Cont |
|
- | |||||
| 29 | 131666936 | Console,frame ,white ,w/trim & Tape |
|
- | |||||
| 53 | 134086812 | Panel,dryer Top ,white ,stackable |
|
$ 336.42 | |||||
| F10 | 134398300 | Switch,start ,turn Type (Replaces: 131447800) |
|
Immediately | $ 77.82 | ||||
| F15 | 131288900 | Switch-temperature |
|
$ 18.69 | |||||
| F38 | 131048300 | Buzzer |
|
- | |||||
| NI | 134006600 | Wiring Harness,main |
|
$ 277.78 |
