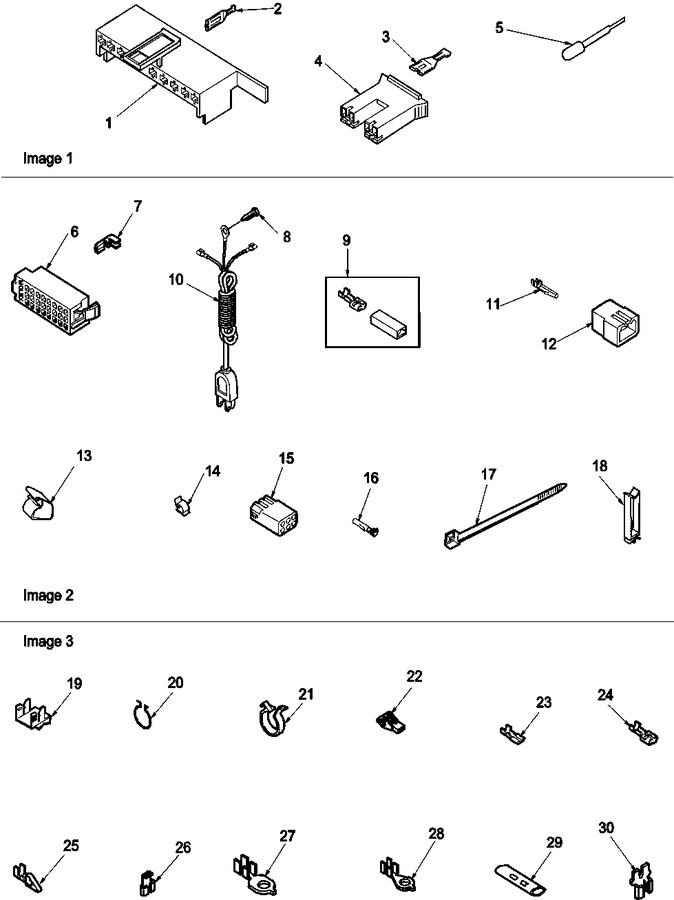

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 34677 | 10 Circuit Plug |
|
- | |||||
| 2 | Y00188 | Terminal,female-molex- |
|
- | |||||
| 3 | Y00121 | Spade Terminal(12 Gauge) |
|
- | |||||
| 4 | 34676 | Plug |
|
- | |||||
| 4 | 34675 | Plug |
|
- | |||||
| 5 | 283P4 | Terminal Extractor Tool |
|
$ 86.72 | |||||
| 6 | 34123 | Housing,lh -24 Position |
|
- | |||||
| 6 | 32746 | Housing,r.h.-24 Positi |
|
- | |||||
| 7 | Y00188 | Terminal,female-molex- |
|
- | |||||
| 8 | Sub. To D513139P | Screw,10b-16 X 1/2 Hex (Replaces: 52909) |
|
- | |||||
| 9 | 00234 | Terminal,insulated |
|
- | |||||
| 10 | 33559 | Power Cord |
|
- | |||||
| 11 | Y00116 | Terminal,pin-male |
|
- | |||||
| 12 | 23033 | Plug,9 Circuit |
|
- | |||||
| 12 | 26302 | Plug,1 Circuit |
|
- | |||||
| 12 | 23041 | Plug,6 Circuit |
|
- | |||||
| 13 | 35521 | Clip,harness Holder |
|
$ 104.07 | |||||
| 14 | 21036 | Clip,cable |
|
$ 62.49 | |||||
| 15 | 26708 | Receptacle,6 Circuit |
|
- | |||||
| 15 | 26163 | Receptacle,9 Circuit |
|
- | |||||
| 15 | 26301 | Receptacle,molex |
|
$ 78.98 | |||||
| 16 | Y00117 | Female Socket Terminal |
|
- | |||||
| 17 | 36466 | Wire Tie |
|
- | |||||
| 18 | 36274 | Clip, Harness |
|
- | |||||
| 19 | Y00161 | Ground Clip |
|
- | |||||
| 20 | 51291 | Clip,wire |
|
- | |||||
| 21 | 504034 | Clip, Wire |
|
- | |||||
| 22 | 70210 | Insulator,blue |
|
- | |||||
| 23 | 00112 | Terminal,spade-3/16 Fe |
|
- | |||||
| 24 | Y00119 | Spade Terminal(18 Gauge) |
|
- | |||||
| 25 | 00220 | Terminal,crimp-single |
|
Immediately | $ 9.12 | ||||
| 26 | Y00120 | Terminal,flag-1/4 Fema |
|
- | |||||
| 27 | Y00113 | Terminal,ring-1/4 Stud |
|
- | |||||
| 28 | 00110 | Terminal,ring-10 Stud |
|
$ 9.23 | |||||
| 29 | 21091 | Connector Two 1/4 Inch Male |
|
- | |||||
| 30 | 29673 | Double Connector |
|
- |
