Diagram # Part Number Description Series Availability Ships Price Add to Cart

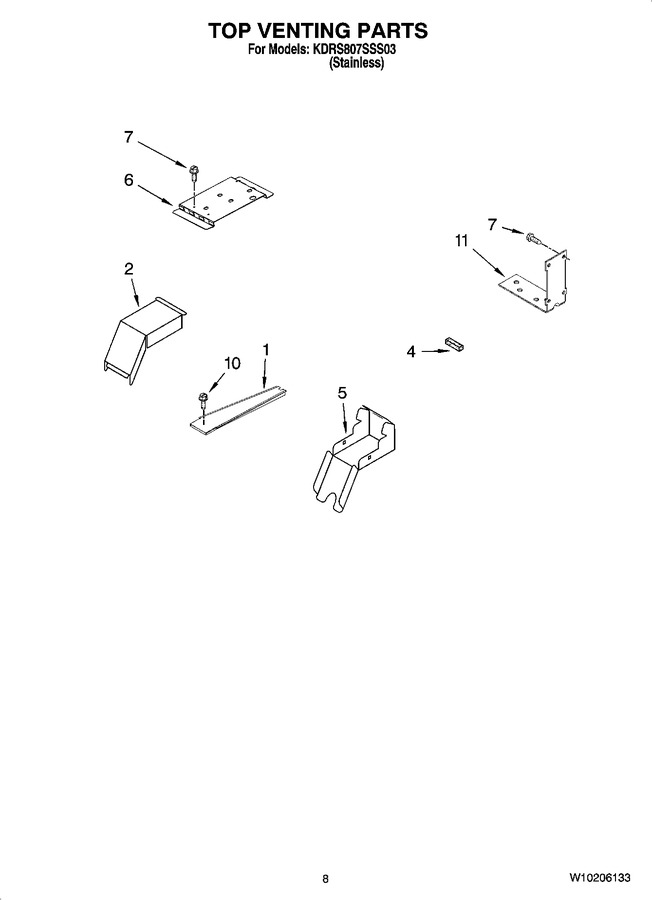

1 4451759 Vent, Exhaust Special Order $ 90.01

2 4455178 Elbow, Vent- Top Special Order $ 13.30

4 W10491987 Block, Foam   (Replaces: 4451758) In-Stock Immediately $ 6.98

5 4455177 Elbow, Vent- Bottom Special Order $ 9.77

6 W10143041 Bracket, Terminal Box Appelez-nous -
7 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

10 WP4449040 Screw   (Replaces: 4449040) Special Order $ 6.78

11 WP4455352 Bracket, Blower   (Replaces: 4455352) Special Order $ 32.15


    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for KDRS807SSS03
