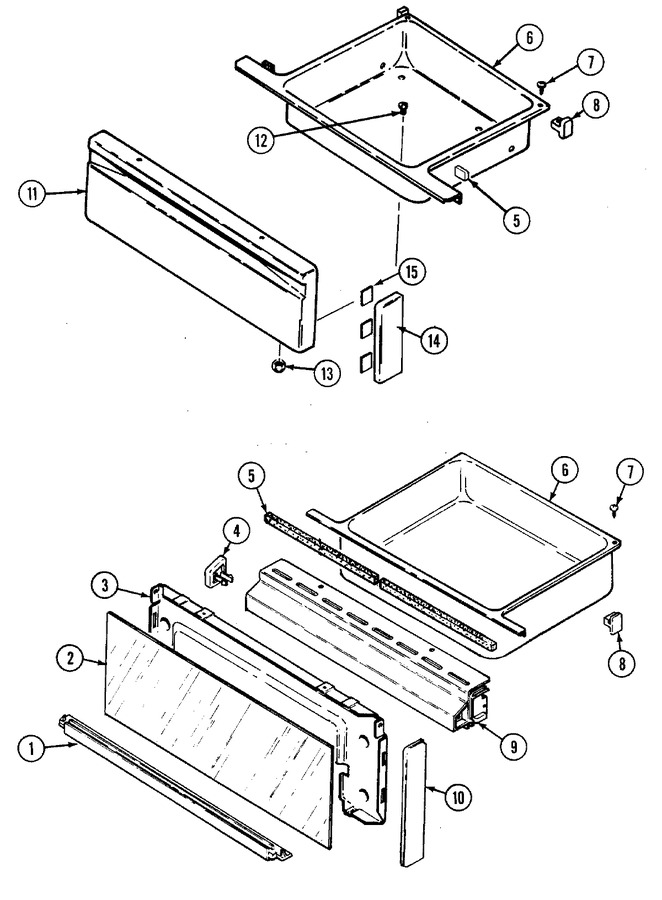

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Drawer
05 - Gas Controls
06 - Oven
07 - Top Assembly
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7744P104-60 | Trim, Bottom (alm) | 01-07 |
|
- | ||||
| 2 | 7902P363-60 | Glass, Storage | 01-07 |
|
- | ||||
| 2 | 7902P353-60 | Glass, Drawer (wht) | 01-07 |
|
- | ||||
| 3 | 2404F036-80 | Lining, Door | 01-07 |
|
- | ||||
| 4 | 7744P075-60 | End Cap (rt) | 01-07 |
|
- | ||||
| 4 | 7744P076-60 | End Cap (lt) | 01-07 |
|
- | ||||
| 5 | WP854334 | Spacer, Rubber (Replaces: 8010P086-60) | 01-07 |
|
$ 11.95 | ||||
| 6 | 3405F017-80 | Drawer, Storage | 01-07 |
|
- | ||||
| 6 | 3405F014-80 | Drawer, Storage | 08 |
|
- | ||||
| 7 | 7101P291-60 | Screw | 01-07 |
|
- | ||||
| 8 | 8004P026-60 | Support, Drawer (rear) | 01-07 |
|
$ 9.29 | ||||
| 9 | 7701P104-60 | Handle, Door (wht) | 01-07 |
|
- | ||||
| 9 | 7701P112-60 | Handle, Door (alm) | 01-07 |
|
- | ||||
| 10 | 7744P079-60 | Trim, Storage Door | 01-07 |
|
- | ||||
| 10 | 7744P057-60 | Trim, Drawer | 01-07 |
|
- | ||||
| 11 | 2416F038-62 | Panel, Drawer (wht) | 08 |
|
- | ||||
| 12 | WP4159193 | Screw (Replaces: 7101P115-60) | 08 |
|
$ 4.29 | ||||
| 13 | WPW10131078 | Nut, Lock (Replaces: 7103P085-60) | 08 |
|
$ 4.00 | ||||
| 14 | 7744P112-60 | End Cap, Drawer (alm) | 08 |
|
- | ||||
| 14 | 7744P068-60 | End Cap (blk) | 01 |
|
- | ||||
| 14 | 7744P067-60 | End Cap, Drawer (wht) | 08 |
|
- | ||||
| 15 | 8270P098-60 | Tape | 08 |
|
$ 5.02 |
