SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body

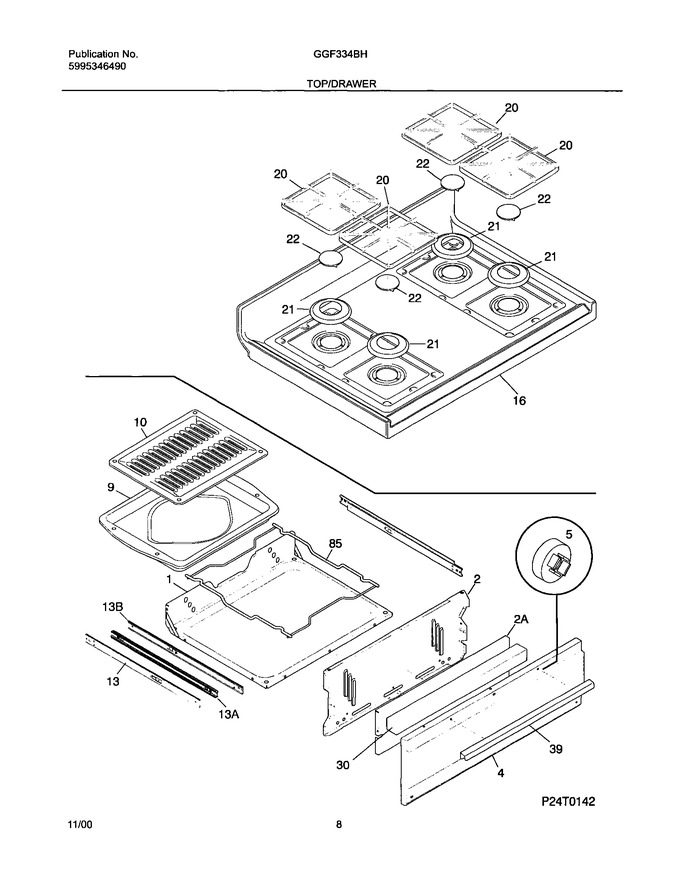

09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage, Broiler				$ 232.57
2	316110101		Liner-low Broil		Appelez-nous	-
4	316056205		Panel-drawer-white		Appelez-nous	-
5	316129100		Fastener-spacer,push-in Nut ,nylon		Appelez-nous	-
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
13	316111501		Glide-low Broil,outer		Appelez-nous	-
16	5303301546		Panel-main Top,white		Appelez-nous	-
21	316011300		Trim Ring-burner, Black, Small				$ 68.59
29	316111600		Glide-low Broil, Inner,inner		Appelez-nous	-
30	316111400		Insulation,broiler Drawer		Appelez-nous	-
39	316019505		Handle-drawer, White				$ 82.27
50	316096900		Bezel,nameplate ,black				$ 15.38
60	316021109		Screw,8-18 X 0.500 ,white   (Replaces: 316021112)			Immediately	$ 27.50
85	316115600		Rack-low Broil				$ 105.47
2A	316110800		Shield,broiler		Appelez-nous	-
F20	316085201		Grate,black ,(4)		Appelez-nous	-
F22	316010901		Cap-burner,gloss Black ,small ,(4)				$ 69.01
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312 ,(2)				$ 6.62
NI	5303280308		Screw-handle Mtg,wafer Hd Sq Dr ,10-24t X 2.00				$ 16.96
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021120		Screw, 8-18 X 5/8 ,shoulder Sqdr				$ 13.28
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
