02 - Backguard


03 - Burner


04 - Body


06 - Top/drawer


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

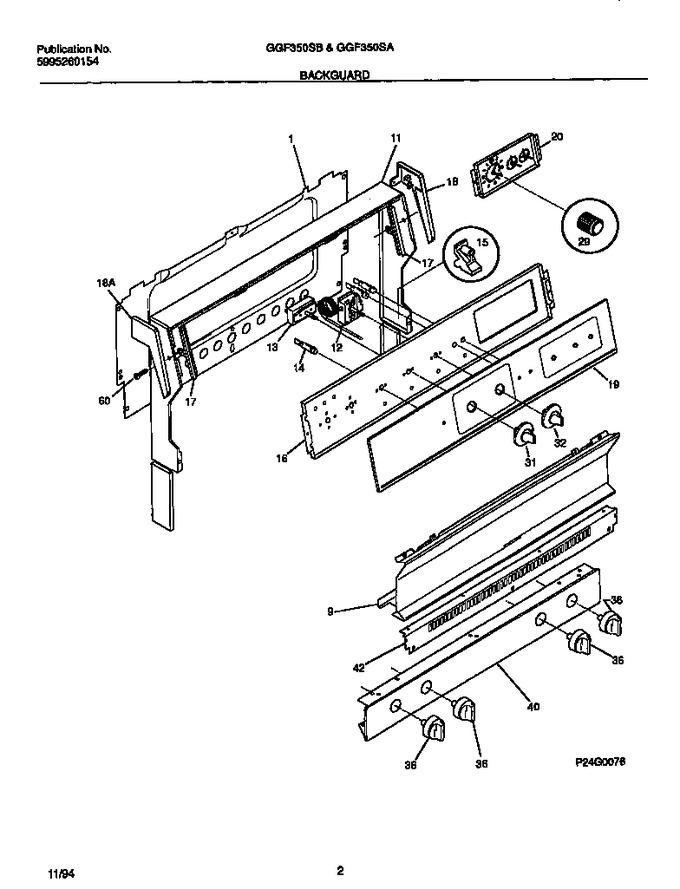

1	316028703		Shield-backguard, Rear Wall		Appelez-nous	-
9	316012502		Trim-splasher, Almond		Appelez-nous	-
11	3131238		Trim, Wrapper		Appelez-nous	-
12	5303271746		Thermostat-oven				$ 414.28
13	5303212678		Switch Selector		Appelez-nous	-
14	5308037896		Indicator Light				$ 39.75
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
17	3131240		Trim-glass Retainer, (2)		Appelez-nous	-
18	3131230		End Cap, Rh		Appelez-nous	-
19	5303212715		Panel-control, Glass		Appelez-nous	-
20	5303212676		Clock/timer, Analog 3 Stem		Appelez-nous	-
29	316029000		Knob-clock		Appelez-nous	-
31	316019133		Knob-selector		Appelez-nous	-
32	316019132		Knob-thermostat		Appelez-nous	-
36	316023006		Knob-top Valve, (4)		Appelez-nous	-
40	5303212681		Panel-manifold		Appelez-nous	-
42	3131241		Trim-vent		Appelez-nous	-
60	5303290188		Screw, 6 Ov Sdr, 8-18 X 1/2		Appelez-nous	-
*71120	316001422		Harness-wiring, Backguard		Appelez-nous	-
*71121	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*71122	3204745		Bushing-ctrl Shaft		Appelez-nous	-
*71123	316021109		Screw-screw-8-18 X 3/8 Hex, Hex, 8-18 X 3/8, Back/bodysi   (Replaces: 316021105)			Immediately	$ 27.50
14A	3201728		Light/lamp, Indicator, Red, Lock, 125, Lock, (non-illustrated)		Appelez-nous	-
18A	3131229		End Cap, Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
