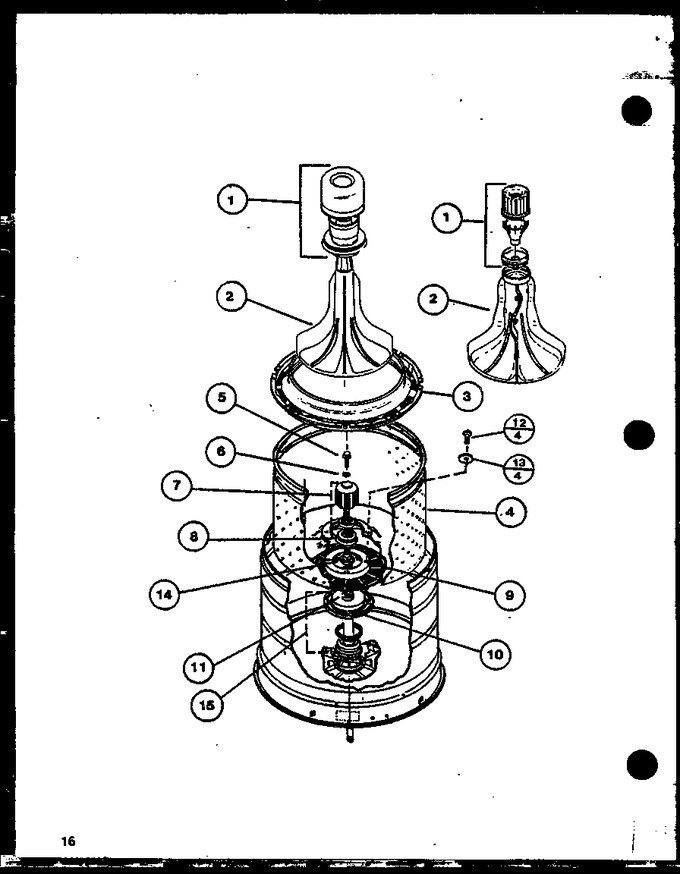

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	34155		Fabric Softener Dispenser		Appelez-nous	-
2	33174		Agitator				$ 40.04
3	32989		Clothes Guard		Appelez-nous	-
4	33296		Washtub		Appelez-nous	-
5	30852		Screw,no.8-1/4 X 20 X 3/		Appelez-nous	-
6	30853		Seal		Appelez-nous	-
7	39508P		Drive Bell And Seal Assembly   (Replaces: 30071P)			Immediately	$ 45.90
8	39508P		Drive Bell Seal Kit   (Replaces: 442P3)			Immediately	$ 45.90
9	32998		Lint Filter		Appelez-nous	-
10	27125		Gasket		Appelez-nous	-
11	29728		Splined Insert			Immediately	$ 6.95
12	WPW10116787		Cap Screw   (Replaces: 27202)				$ 19.26
13	28094		Gasket		Appelez-nous	-
14	Y29220		Locknut		Appelez-nous	-
15	646P3A		Hub & Seal Kit   (Replaces: 495P3)				$ 313.62

    View Diagram in Separate Window       Print Part List
