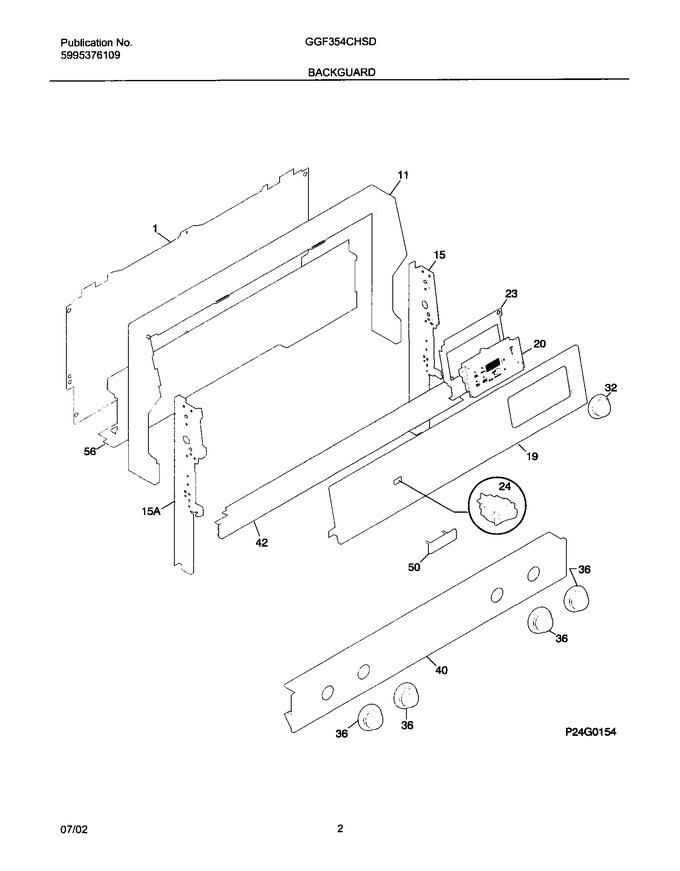

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028700		Shield-backguard,galv ,rear Wall		Appelez-nous	-
2	316051600		Shield,backguard ,inner		Appelez-nous	-
11	316061857		Trim-wrapper,white ,textured		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316082651		Panel,control ,white		Appelez-nous	-
23	316100400		Bracket-clock Mtg		Appelez-nous	-
32	316101401		Knob,thermostat ,white		Appelez-nous	-
36	316109513		Knob-top Valve,white				$ 47.25
40	316009285		Panel-manifold,white		Appelez-nous	-
42	316083300		Trim,vent ,black		Appelez-nous	-
50	316096901		Bezel-nameplate, White				$ 9.82
51	316095403		Nameplate, Gibson, White		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
15A	316023109		Support,backguard ,lh		Appelez-nous	-
20A	316101522		Overlay,clock ,white		Appelez-nous	-
F20	316101102		Clock/timer, Trimline		Appelez-nous	-
F24	5304527842		Switch,oven Light ,white ,rocker   (Replaces: 316118101)			Immediately	$ 16.13
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
