SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Door


07 - Burner


09 - Body


11 - Top/drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

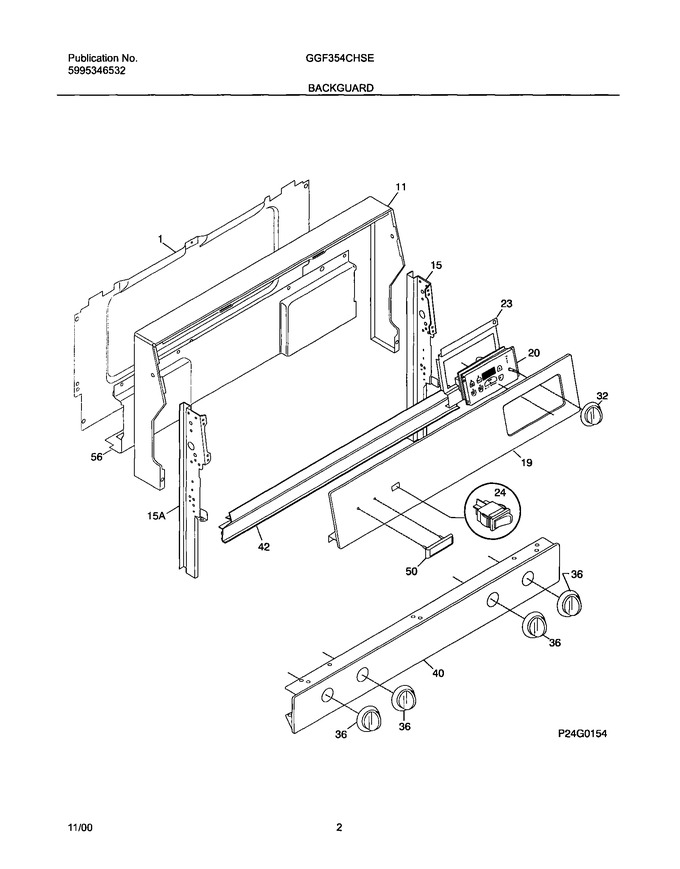

1	316028700		Shield-backguard,galv ,rear Wall		Appelez-nous	-
2	316051600		Shield,backguard ,inner		Appelez-nous	-
11	316061857		Trim-wrapper,white ,textured		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316082651		Panel-control,metal ,white		Appelez-nous	-
23	316100400		Bracket-clock Mtg		Appelez-nous	-
36	316109513		Knob-top Valve,white				$ 47.25
40	316009285		Panel-manifold,white		Appelez-nous	-
42	316083300		Trim-vent		Appelez-nous	-
50	316096901		Bezel-nameplate, White				$ 9.82
51	316095403		Nameplate, Gibson, White		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
15A	316023109		Support,backguard ,lh		Appelez-nous	-
20A	316101502		Overlay-clock,white				$ 108.15
F20	316131600		Clock/timer,electronic				$ 296.99
F24	5304527842		Switch-oven Light,rocker ,white   (Replaces: 316118101)			Immediately	$ 16.13
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
