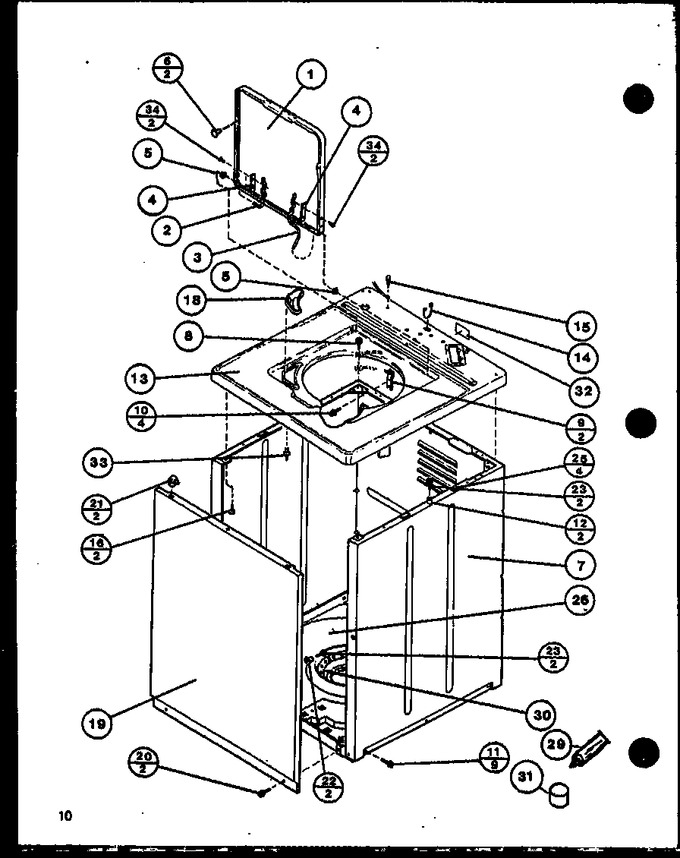

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33541LP		Lid,w/instructions		Appelez-nous	-
1	33541HP		Lid,w/instructions		Appelez-nous	-
1	33541WP		Lid,w/instructions		Appelez-nous	-
2	36438		Hinge   (Replaces: 34326)				$ 8.06
3	DE81-10050A		Hinge,lid-right   (Replaces: 34325)				$ 33.80
4	34293		Washer,nylon W/p.s.a.		Appelez-nous	-
5	33446		Bushing			Immediately	$ 6.95
6	32507		Bumper				$ 6.95
7	31669LP		Cabinet, Almond		Appelez-nous	-
7	31669WP		Cabinet, White		Appelez-nous	-
8	56392		Screw,8-18 X 3/8 Tappi		Appelez-nous	-
9	Y27103		Hinge,hold-down Lug		Appelez-nous	-
10	WP3390631		Hex Head Screw   (Replaces: 51780)				$ 7.04
11	WP27001200		Screw   (Replaces: 27196)				$ 6.91
12	56079		Locater, Panel			Immediately	$ 6.95
13	33451LP		Top, Cabinet		Appelez-nous	-
13	33451WP		Repl By 34902wp		Appelez-nous	-
14	21903		Strain Relief		Appelez-nous	-
15	Sub. To D513139P		Screw,10b-16 X 1/2 Hex   (Replaces: 52909)		Appelez-nous	-
16	WP27001200		Screw,10-24t X 3/4 Sem   (Replaces: Y31644)				$ 6.91
18	33516		Use 34776		Appelez-nous	-
19	32708W		Front Panel, White		Appelez-nous	-
19	32708L		Front Panel, Almond		Appelez-nous	-
20	WP27001200		Screw   (Replaces: 27196)				$ 6.91
21	WP22001650		Hold-down Clip   (Replaces: 28835)			Immediately	$ 7.34
22	28102		Locator,panel		Appelez-nous	-
23	39733		Screw, Tapping   (Replaces: 32671)				$ 6.95
25	56128		Pad, Bumper   (Replaces: Y56128)				$ 6.95
26	31653P		Assy,base-complete-g90				$ 95.15
29	WP26594P		Grease, Silicone - 2oz Tube   (Replaces: 26594P)				$ 75.86
30	434P3		Kit,snubber Pad		Appelez-nous	-
31	22506P		Adhesive,3m-1300-5 Oz.		Appelez-nous	-
32	24903		Sticker,disconnect Pow		Appelez-nous	-
33	56534		Barrel,support		Appelez-nous	-
34	WPW10119828		Screw   (Replaces: 34337)			Immediately	$ 6.47
