Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9759133 Safecooking Tips Appelez-nous -
1 9763467 Guide Easy Set Appelez-nous -
1 W10075750 Installation Instructions Appelez-nous -
1 9763459 Use & Care Guide Appelez-nous -
1 9762788 Tech Sheet Appelez-nous -
1 9757680 Anti-tip Instruct. Appelez-nous -
1 3191638 Safe Cooking Tips Appelez-nous -
2 W10110471 Burner Box Appelez-nous -
3 9761784 Bracket, Mounting Appelez-nous -
4 W10106360 Cooktop Appelez-nous -
5 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

7 WP12990527 Screw   (Replaces: 3400843) In-Stock Immediately $ 7.15

8 W10108030 Bracket, Spark Module Appelez-nous -
9 9763445 Bracket, Burner Appelez-nous -
10 9756821 Support, Wiring Appelez-nous -
11 WPW10110491 Module, Spark   (Replaces: 8522426) In-Stock Immediately $ 276.35

12 9761555CB Grate, Burner Special Order $ 191.98

13 9761556CB Grate, Brnr (tcb) (coal Black) Special Order $ 112.08

16 WP9759944 Thermostat (60c)   (Replaces: 9759944) In-Stock Immediately $ 121.57

18 WP9761557CB Grate, Insert (tcb)   (Replaces: 9761557CB) In-Stock Immediately $ 153.36

19 9761563CB Cap, Burner (12.5k (rr)) In-Stock Immediately $ 92.83

19 WP8284669 Cap, Burner (6k (rf, Lr))   (Replaces: 8284669) In-Stock Immediately $ 64.79

20 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

21 W10491985 Screw   (Replaces: 3196160) In-Stock Immediately $ 6.47

22 WPW10128446 Orifice Holder (small (2))   (Replaces: W10110375) In-Stock Immediately $ 97.44

22 W10110376 Orifice Holder (large) Appelez-nous -
23 9761755 Cover, Cktp Rear Special Order $ 53.38

24 WP9763436 Cover, Top Rear   (Replaces: 9763436) Special Order $ 127.77

25 WPW10406243 Head, Burner (small (2))   (Replaces: 8286181) In-Stock Immediately $ 33.50

25 WPW10406797 Head, Burner (large)   (Replaces: 8286182) Special Order $ 79.64

26 W10109920 Gasket (tape) Special Order $ 43.42


    View Diagram in Separate Window     Print Icon   Print Part List

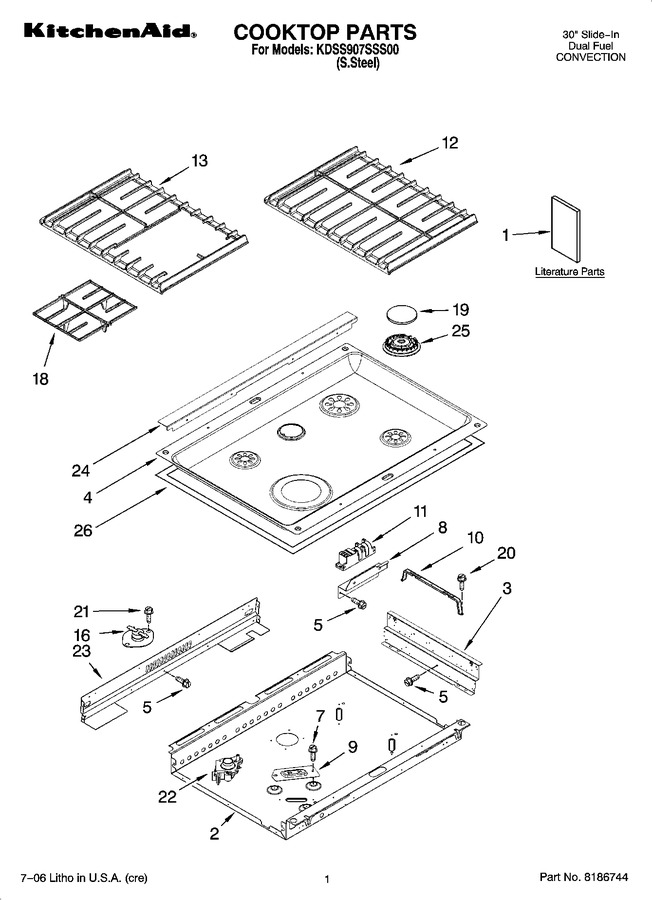

Diagram for KDSS907SSS00
