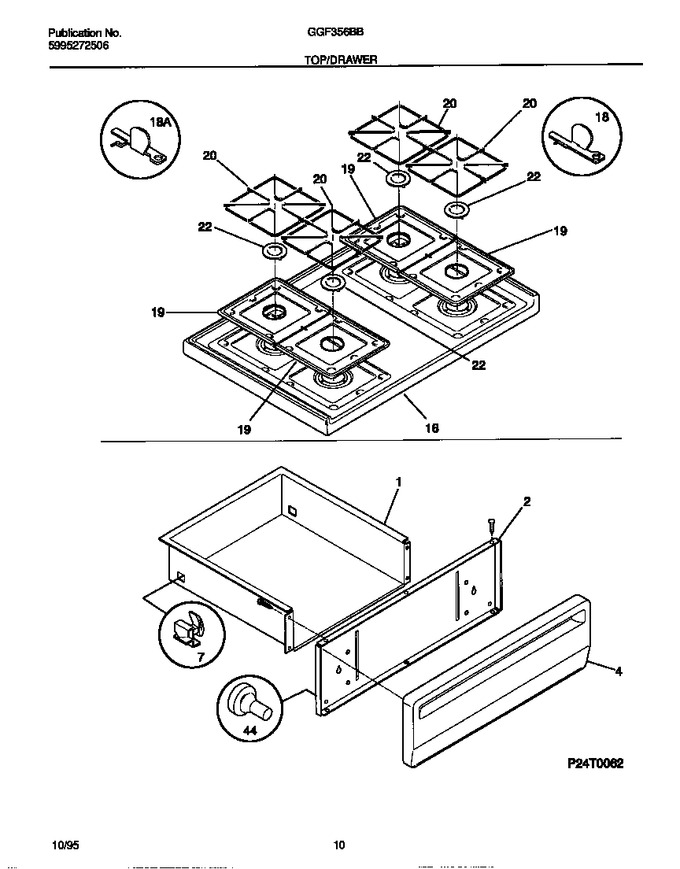

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316011501 | Drawer-utility |
|
- | |||||
| 2 | 3131975 | Shield-panel |
|
- | |||||
| 4 | 08067785 | Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated) |
|
- | |||||
| 4 | 316084405 | Panel-drawer, White |
|
- | |||||
| 7 | 3051163 | Glide,drawer ,rear |
|
Immediately | $ 19.41 | ||||
| 16 | 316010408 | Main Top, White |
|
- | |||||
| 18 | 08067746 | Bracket-hinge,main Top Lh |
|
- | |||||
| 19 | 316011401 | Pan-burner |
|
$ 20.58 | |||||
| 20 | 318228310 | Grate (4) (Replaces: 5303269632) |
|
Immediately | $ 22.91 | ||||
| 22 | 316010901 | Cap-burner, Black, (4) |
|
$ 69.01 | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| *67126 | 5303281584 | Screw, Truss Head, 8-18 X 1/2 |
|
- | |||||
| *67127 | 5303288567 | Screw, 8-18 X 3/8, (4) |
|
- | |||||
| 16A | 5303271891 | Gusset-top Mtg, Rh (not Illustrated) |
|
- | |||||
| 16B | 5303271892 | Gusset-top Mtg, Lh (not Illustrated) |
|
- | |||||
| 18A | 08067747 | Bracket-hinge,main Top Rh |
|
- | |||||
| 18B | 3203618 | Rivet-pop, Waring-plate (not Illustrated) |
|
- |
