01 - Cover


03 - Cabinet/drum


05 - Front Panel/lint Filter

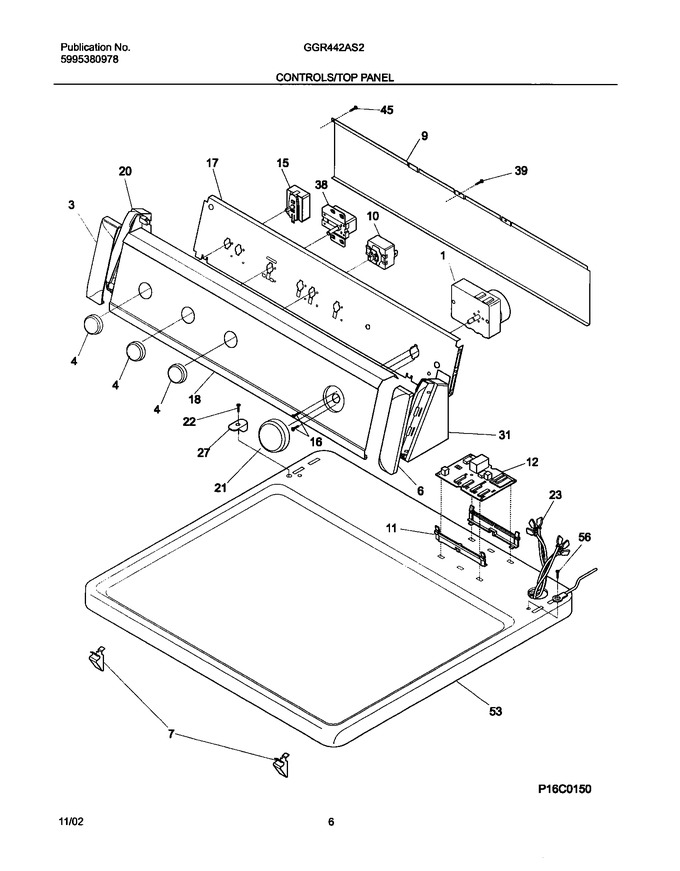

07 - Controls/top Panel


09 - Motor


11 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131717300		Timer-dryer				$ 285.92
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	134886700		Knob,rotary ,white/gray   (Replaces: 131848601)				$ 60.01
6	131122601		Cover-end Cap, White, Rh				$ 47.20
7	3205821		Clip,top-to-front			Immediately	$ 35.44
9	134088700		Panel,console Back		Appelez-nous	-
11	131587400		Bracket,pc Board Mtg. ,(2)				$ 44.40
16	134034300		Screw,pan Hd Phillips ,8-18b X 0.250		Appelez-nous	-
17	131728900		Bracket,control Mtg.		Appelez-nous	-
18	134040600		Panel,console ,white		Appelez-nous	-
20	131122711		End Cap,white ,lh				$ 58.38
21	131860001		Knob,timer ,white/gray				$ 35.44
22	131266300		Screw,cr Oval Head ,8-18ab X 1.250 ,black		Appelez-nous	-
23	134005400		Wiring Harness		Appelez-nous	-
27	131197000		Clip-console Mtg				$ 13.62
31	131122701		End Cap, White, Rh				$ 53.29
39	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
45	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
53	134086802		Panel,dryer Top ,white ,console Mtg				$ 203.75
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,brkt-to-top Pnl				$ 10.46
F10	134398300		Switch,start ,turn Type   (Replaces: 131447800)			Immediately	$ 77.82
F12	131620200		Control Board,moisture Sensor		Appelez-nous	-
F15	131641900		Switch,temperature ,4 Posn Rotary		Appelez-nous	-
F38	131048300		Buzzer		Appelez-nous	-
NI	131663300		Wiring Harness,buzzer		Appelez-nous	-
