| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
38231W |
|
Cover, Top |
|
|
|
$ 25.60 |
|
|
| 2 |
WP90767 |
 |
Screw,8b-18 X 3/8 Ind (Replaces: 23962) |
|
|
Immediately |
$ 7.04 |
|
|
| 3 |
36335 |
|
Temperature Switch |
|
|
|
$ 59.62 |
|
|
| 4 |
201927P |
 |
Pressure Switch (Replaces: 39023) |
|
|
|
$ 85.88 |
|
|
| 5 |
W11233072 |
 |
Screw,8-18 X 3/8 Phil Pan Hd (Replaces: 34904) |
|
|
Immediately |
$ 12.62 |
|
|
| 6 |
37919CP |
|
Timer, 115v/60hz 6 Cyc (Replaces: 37919) |
|
Appelez-nous
|
- |
|
|
|
| 7 |
WP90767 |
|
Screw, 8b-18x3/8 Slt (Replaces: 501086) |
|
|
Immediately |
$ 7.04 |
|
|
| 8 |
D504008WP |
 |
Cap-end Rh (Replaces: 504008W) |
|
|
|
$ 19.23 |
|
|
| 9 |
37782 |
|
Control Hood Back Panel |
|
|
|
$ 26.14 |
|
|
| 10 |
37992WP |
 |
Top, Home W/bleach |
|
|
|
$ 250.25 |
|
|
| 11 |
35887 |
|
Hold-down Clip |
|
Appelez-nous
|
- |
|
|
|
| 12 |
38171 |
|
Panel, Control Support |
|
|
|
$ 46.87 |
|
|
| 13 |
Y00161 |
|
Ground Clip |
|
Appelez-nous
|
- |
|
|
|
| 14 |
38562W |
|
Panel, Graphic-amana |
|
Appelez-nous
|
- |
|
|
|
| 15 |
36700W |
|
Knob Skirt |
|
|
|
$ 11.93 |
|
|
| 16 |
201501W |
 |
Knob, Timer (Replaces: 35333W) |
|
|
Immediately |
$ 16.52 |
|
|
| 17 |
38424W |
 |
Switch, Rocker (wht) |
|
|
|
$ 8.73 |
|
|
| 18 |
WP36701W |
 |
Knob (white) (Replaces: 36701W) |
|
|
Immediately |
$ 44.31 |
|
|
| 19 |
D504009WP |
 |
Cap-end Lh (Replaces: 504009W) |
|
|
Immediately |
$ 22.20 |
|
|

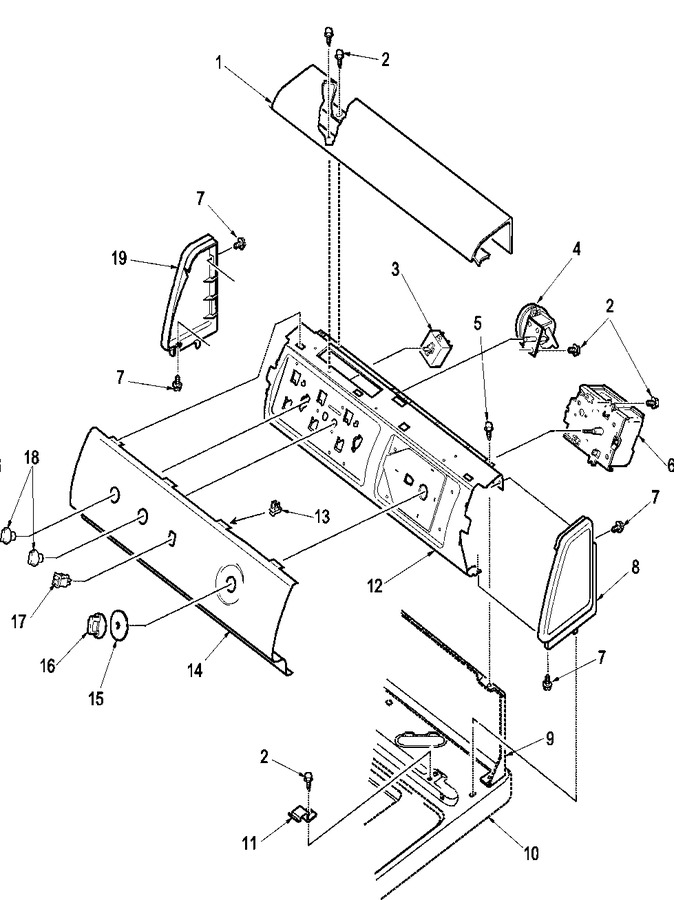

View Diagram in Separate Window
Print Part List
