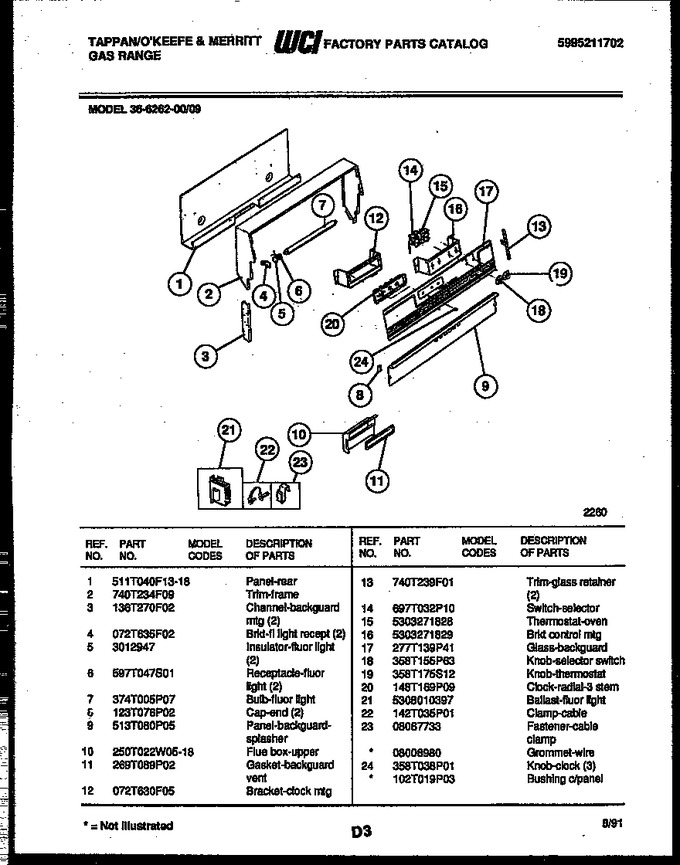

02 - Backguard
03 - Control Panel
04 - Cooktop Parts
05 - Door Parts
06 - Burner, Manifold And Gas Control
07 - Broiler Drawer Parts
08 - Panel Compartment
09 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 511T040F13-18 | Panel-rear |
|
- | |||||
| 2 | 740T234F09 | Trim-frame |
|
- | |||||
| 3 | 136T270F02 | Channel-backguard Mtg (2) |
|
- | |||||
| 4 | 072T635F02 | Brkt-fluor Light Recept |
|
- | |||||
| 5 | 3012947 | Insulator-fluor Light (2) |
|
- | |||||
| 6 | 597T047S01 | Receptacle-fluor Light (2) |
|
- | |||||
| 7 | 374T005P07 | Bulb-fluor Light |
|
- | |||||
| 8 | 123T076P02 | Cap - End (2) |
|
- | |||||
| 9 | 513T080P05 | Panel - Backguard (splasher) |
|
- | |||||
| 10 | 250T022W05-18 | Flue Box-upper |
|
- | |||||
| 11 | 269T089P02 | Gasket - Backguard Vent |
|
- | |||||
| 12 | 072T630F05 | Bracket - Clock Mtg |
|
- | |||||
| 13 | 740T239F01 | Trim-glass Retainer (2) |
|
- | |||||
| 14 | 697T032P10 | Switch-selector |
|
- | |||||
| 15 | 5303271828 | Thermostat-oven |
|
- | |||||
| 16 | 5303271829 | Brkt Control Mtg |
|
- | |||||
| 17 | 277T139P41 | Glass-backguard |
|
- | |||||
| 18 | 358T155P63 | Knob-selector Switch |
|
- | |||||
| 19 | 358T175S12 | Knob-thermostat |
|
- | |||||
| 20 | 148T169P09 | Clock-radial-3 Stem |
|
- | |||||
| 21 | 5308010397 | Ballast-fluor Light |
|
- | |||||
| 22 | 142T035P01 | Clamp - Cable |
|
- | |||||
| 23 | 08067733 | Fastener-cable Clamp |
|
- | |||||
| 24 | 358T038P01 | Knob-clock (3) |
|
- | |||||
| *57503 | 102T019P03 | Bushing C/panel |
|
- | |||||
| 23A | 08008980 | Grommet-wire (non-illustrated) |
|
- |
