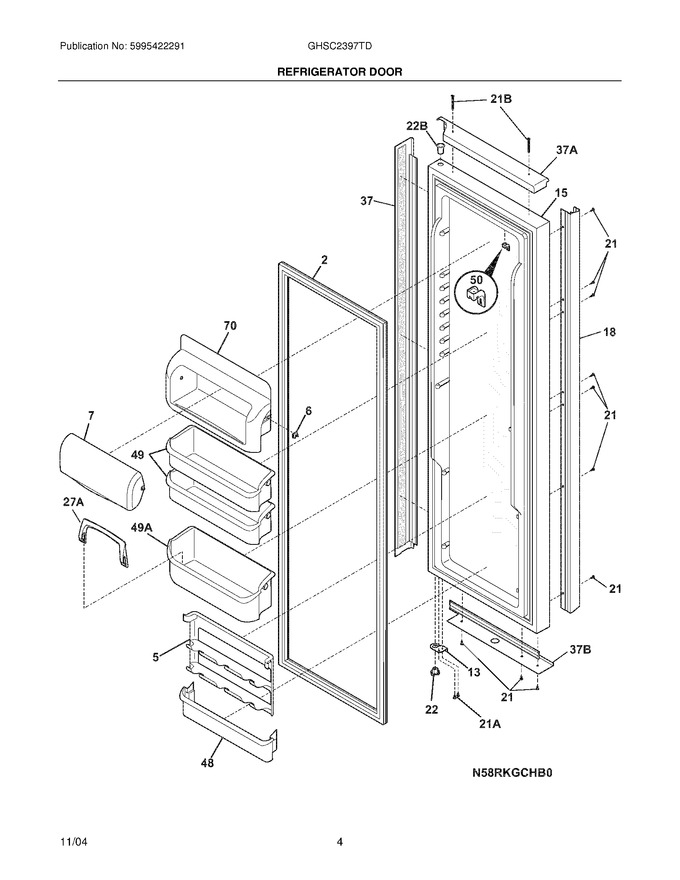

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241516102		Rack-can				$ 101.54
6	241515901		Lug-dairy Compartment				$ 42.47
7	241515606		Door-dairy   (Replaces: 241515601)				$ 40.96
13	5303918455		Door Stop,white,ref   (Replaces: 240537101)				$ 142.04
15	241534514		Door-refr,white ,complete Assy		Appelez-nous	-
18	241533602		Handle-refr Door,white		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
22	240328201		Bearing-hinge(ref),closer			Immediately	$ 17.72
37	241533702		Trim-door,white ,side		Appelez-nous	-
48	241511704		Bin-door,ref		Appelez-nous	-
49	241505301		Bin-door,2-liter   (Replaces: 240430321)			Immediately	$ 76.40
50	241508401		Cover-magnet				$ 88.93
70	241515801		Compartment-dairy,removable				$ 177.89
21A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
21B	241543201		Screw,no.10-16 X 2		Appelez-nous	-
22B	240328401		Bearing-hinge(ref),natural ,upper				$ 12.97
27A	240396102		Retainer,tall Bottle				$ 19.13
37A	241534202		Trim-door,white ,top		Appelez-nous	-
37B	241533802		Trim-door,white ,bottom		Appelez-nous	-
49A	241505506		Bin-door,gallon   (Replaces: 240430322)				$ 89.85
F2	241510201		Gasket-refr Door,white ,magnetic			Immediately	$ 222.14
