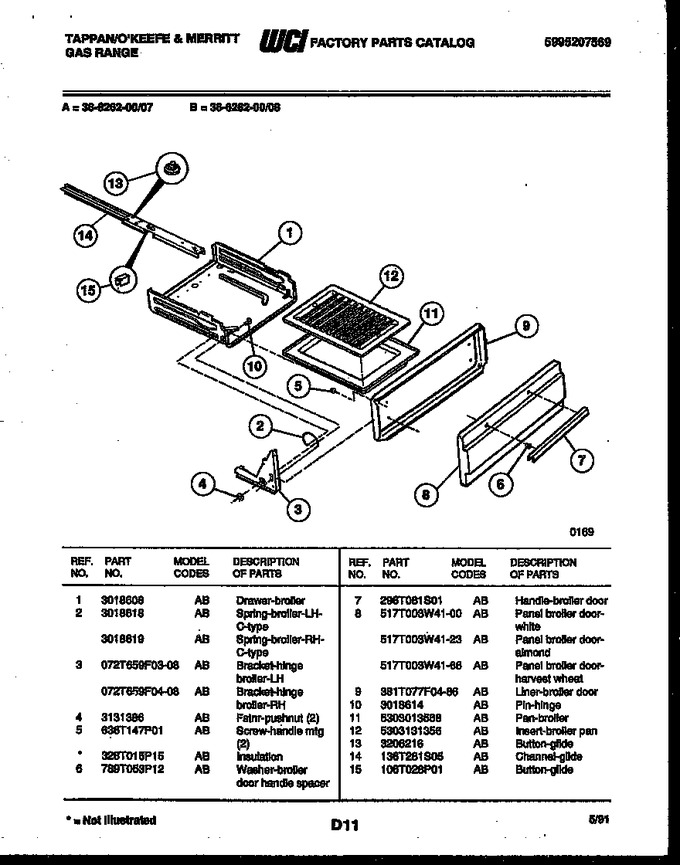

| 1 | 3018608 | Drawer-broiler |
|
- | |||||
| 2 | 3018618 | Spring, Broiler Lh C Type |
|
- | |||||
| 3 | 072T659F03-08 | Bracket, Hinge Broiler (lh) |
|
- | |||||
| 4 | 3131386 | Fstnr, Push Nut (2) |
|
- | |||||
| 5 | 636T147P01 | Screw-handle Mtg (2) |
|
- | |||||
| 6 | 789T053P12 | Washer-broiler Door Handle/spacer |
|
- | |||||
| 7 | 296T081S01 | Handle-broiler Door |
|
- | |||||
| 8 | 517T003W41-66 | Panel Broiler Door-harvest Wheat |
|
- | |||||
| 9 | 381T077F04-86 | Liner-broiler Door |
|
- | |||||
| 10 | 3018614 | Pin-hinge |
|
- | |||||
| 11 | 5303013568 | Pan-broiler |
|
- | |||||
| 12 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 13 | 3206216 | Button Glide |
|
- | |||||
| 14 | 136T281S05 | Channel-glide |
|
- | |||||
| 15 | 106T028P01 | Button, Glide |
|
- | |||||
| 2A | 3018619 | Spring, Broiler, Rh, C Type |
|
- | |||||
| 3A | 072T659F04-08 | Bracket, Hinge Broiler (rh) |
|
- | |||||
| 5A | 328T015P15 | Insulation (non-illustrated) |
|
- |
