| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
25-7941 |
|
``o`` Ring |
Q |
|
|
$ 5.83 |
|
|
| 2 |
35-2835 |
|
Bearing, Centerpost |
Q |
Appelez-nous
|
- |
|
|
|
| 3 |
35-2792 |
|
Centerpost |
Q |
Appelez-nous
|
- |
|
|
|
| 4 |
35-2983 |
|
Centerpost Assy. |
Q |
Appelez-nous
|
- |
|
|
|
| 4 |
33-6790 |
|
Bearing, Agitator |
Q |
Appelez-nous
|
- |
|
|
|
| 5 |
35-2906 |
|
Seal, Centerpost Bottom |
Q |
Appelez-nous
|
- |
|
|
|
| 6 |
35-2791 |
|
Nut, Spin Tube |
Q |
Appelez-nous
|
- |
|
|
|
| 7 |
25-7938 |
|
``o`` Ring, Basket Drive Hub |
Q |
Appelez-nous
|
- |
|
|
|
| 8 |
35-3647 |
|
Hub, Basket Drive |
Q |
Appelez-nous
|
- |
|
|
|
| 9 |
35-2974 |
|
Tub Seal/hub Assy (ht Trans) |
Q |
|
|
$ 36.14 |
|
|
| 10 |
35-2716 |
|
Housing, Bearing & Seal |
Q |
Appelez-nous
|
- |
|
|
|
| 11 |
35-2205 |
|
Bearing, Spin |
Q |
|
|
$ 40.16 |
|
|
| 11 |
35-2972 |
|
Bearing & Seal Housing Assy. |
Q |
Appelez-nous
|
- |
|
|
|
| 12 |
25-7949 |
|
Ring, Retaining (ag. Shaft) |
Q |
Appelez-nous
|
- |
|
|
|
| 13 |
25-7057 |
|
Washer, Flat |
Q |
Appelez-nous
|
- |
|
|
|
| 14 |
25-7051 |
|
Washer, Flat |
Q |
Appelez-nous
|
- |
|
|
|
| 15 |
25-7895 |
|
Screw, Susp Hsg To Lwr Brg Asy |
Q |
Appelez-nous
|
- |
|
|
|
| 16 |
35-2981 |
|
Cover, Reinforcement |
Q |
Appelez-nous
|
- |
|
|
|
| 17 |
25-7895 |
|
Screw, Susp Hsg To Lwr Brg Asy |
Q |
Appelez-nous
|
- |
|
|
|
| 18 |
35-2621 |
|
Plug, Oil Fill |
Q |
Appelez-nous
|
- |
|
|
|
| 19 |
25-7926 |
|
Screw, Cover To Trans. Housing |
Q |
Appelez-nous
|
- |
|
|
|
| 20 |
35-2620 |
|
Cover, Transmission |
Q |
Appelez-nous
|
- |
|
|
|
| 20 |
35-2971 |
|
Transmission Cover Assy. |
Q |
Appelez-nous
|
- |
|
|
|
| 21 |
35-2903 |
|
Counterweight |
Q |
Appelez-nous
|
- |
|
|
|
| 22 |
35-1030 |
|
Gasket, Transmission Housing |
Q |
Appelez-nous
|
- |
|
|
|
| 23 |
25-7722 |
|
``o`` Ring, Drive Tube |
Q |
Appelez-nous
|
- |
|
|
|
| 24 |
35-3702 |
|
Drive Tube Assy. |
Q |
Appelez-nous
|
- |
|
|
|
| 25 |
35-3804 |
|
Linkage Assy. |
Q |
Appelez-nous
|
- |
|
|
|
| 26 |
LA-2176 |
|
Clutch Assy. |
Q |
Appelez-nous
|
- |
|
|
|
| 27 |
25-7847 |
|
Ring, Retaining (clutch Assy.) |
Q |
Appelez-nous
|
- |
|
|
|
| 28 |
25-7416 |
|
Washer, Flat |
Q |
Appelez-nous
|
- |
|
|
|
| 28 |
25-7415 |
|
Washer, Flat |
Q |
Appelez-nous
|
- |
|
|
|
| 29 |
35-2967 |
|
Spring, Anti-backup |
Q |
Appelez-nous
|
- |
|
|
|
| 30 |
35-2001 |
|
Pinion, Drive |
Q |
Appelez-nous
|
- |
|
|
|
| 31 |
35-3608 |
|
Spring, Clutch |
Q |
Appelez-nous
|
- |
|
|
|
| 32 |
35-2692 |
|
Drive Shaft & Hub Assy. |
Q |
Appelez-nous
|
- |
|
|
|
| 33 |
25-7274 |
|
Washer, Steel |
Q |
Appelez-nous
|
- |
|
|
|
| 34 |
35-2817 |
|
Washer, Nylon |
Q |
Appelez-nous
|
- |
|
|
|
| 35 |
35-2070 |
|
Washer, Steel W/tabs |
Q |
Appelez-nous
|
- |
|
|
|
| 36 |
25-7933 |
|
Ring, Retaining |
Q |
Appelez-nous
|
- |
|
|
|
| 37 |
35-2527 |
|
Gear, Cluster |
Q |
Appelez-nous
|
- |
|
|
|
| 38 |
35-2631 |
|
Gear, Crank |
Q |
Appelez-nous
|
- |
|
|
|
| 39 |
35-2812 |
|
Housing, Transmission |
Q |
Appelez-nous
|
- |
|
|
|
| 40 |
35-2010 |
|
Seal,transmission Housing(lip) |
Q |
Appelez-nous
|
- |
|
|
|
| 41 |
35-2973 |
|
Transmission Hsg Assy W/lwr Br |
Q |
Appelez-nous
|
- |
|
|
|
| 41 |
35-2730 |
|
Bearing Assy. (lower) |
Q |
Appelez-nous
|
- |
|
|
|
| 42 |
35-3724 |
|
Support, Tub |
Q |
Appelez-nous
|
- |
|
|
|
| 43 |
35-2799 |
|
Brace, Tub |
Q |
Appelez-nous
|
- |
|
|
|
| 44 |
25-7930 |
|
Screw 5/16-18x3/4 |
Q |
Appelez-nous
|
- |
|
|
|
| 45 |
35-3698 |
|
Housing, Suspension |
Q |
Appelez-nous
|
- |
|
|
|
| 46 |
35-2017 |
|
Retainer, Brake Spring |
Q |
|
|
$ 5.85 |
|
|
| 47 |
35-2112 |
|
Spring, Brake |
Q |
Appelez-nous
|
- |
|
|
|
| 48 |
25-7930 |
|
Screw 5/16-18x3/4 |
Q |
Appelez-nous
|
- |
|
|
|
| 49 |
25-7895 |
|
Screw, Susp Hsg To Lwr Brg Asy |
Q |
Appelez-nous
|
- |
|
|
|
| 50 |
35-2948 |
|
Brake Rotor & Lining Assy |
Q |
Appelez-nous
|
- |
|
|
|
| 51 |
WP21002026 |
 |
Snubber (Replaces: 35-3788) |
Q |
|
Immediately |
$ 9.68 |
|
|
| 52 |
35-2018 |
|
Stator, Brake |
Q |
Appelez-nous
|
- |
|
|
|
| 53 |
25-7900 |
|
Sems |
Q |
Appelez-nous
|
- |
|
|
|
| 54 |
12002213 |
 |
Drive Pulley (Replaces: 35-2683) |
Q |
|
Immediately |
$ 98.84 |
|
|
| 55 |
12002213 |
|
Cam, Lower (Replaces: 35-2439) |
Q |
|
Immediately |
$ 98.84 |
|
|
| 56 |
WP35-2132 |
 |
Washer,1.25odx.530idx.032 (Replaces: 35-2132) |
Q |
|
|
$ 0.65 |
|
|
| 56 |
35-2082 |
|
Washer,1.25odx.530idx.062 |
Q |
|
|
$ 5.61 |
|
|
| 57 |
WP25-7854 |
 |
Ring, Retaining (Replaces: 25-7854) |
Q |
|
|
$ 10.68 |
|
|
| 58 |
35-2007 |
|
Cap, Dust |
Q |
Appelez-nous
|
- |
|
|
|
| 59 |
12002213 |
|
Thrust Bearing Kit (Replaces: 12500036) |
Q |
|
Immediately |
$ 98.84 |
|
|
| 60 |
35-2025 |
|
Plate, Reinforcement |
Q |
Appelez-nous
|
- |
|
|
|
| 61 |
35-3748 |
|
Transmission Assy |
Q |
Appelez-nous
|
- |
|
|
|

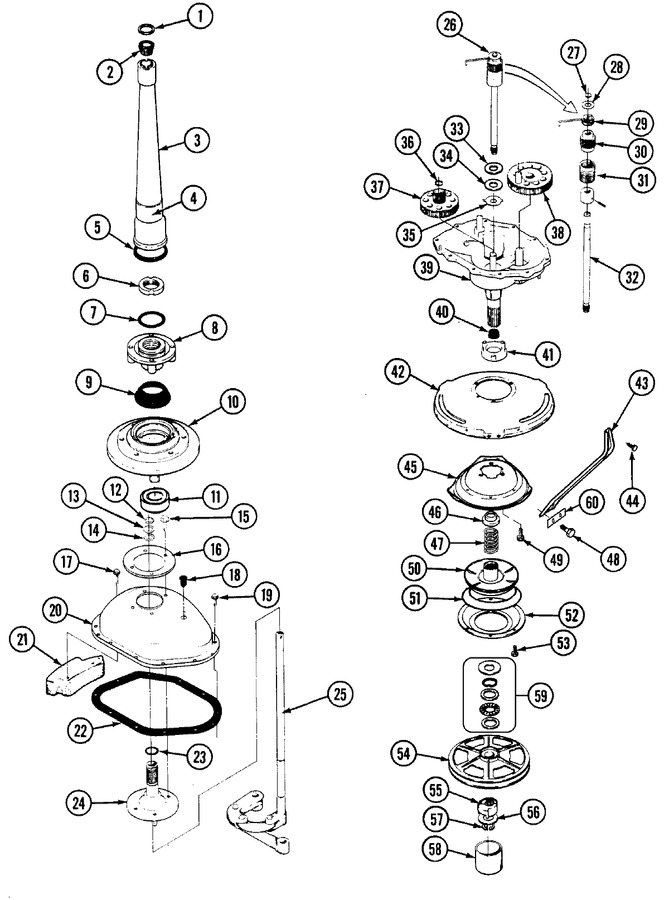

View Diagram in Separate Window
Print Part List
