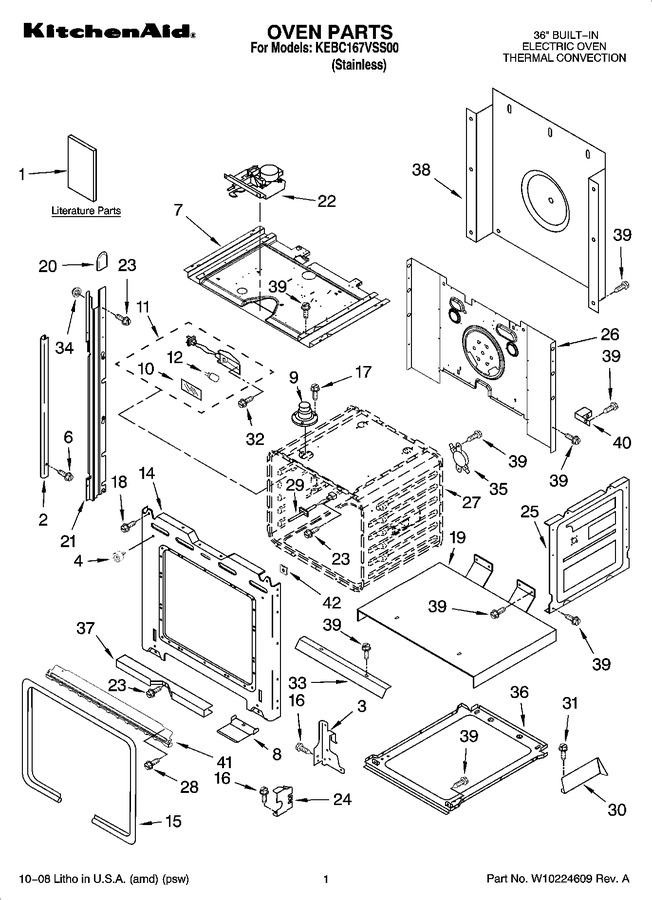

01 - Oven Parts
02 - Control Panel Parts
03 - Internal Oven Parts
04 - Oven Door Parts
05 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10185215 | Tech Sheet (oven) (french) |
|
- | |||||
| 1 | W10185214 | Tech Sheet (oven) (english) |
|
- | |||||
| 1 | 8304426 | Installation Instructions |
|
- | |||||
| 1 | 4448687 | Easy Set Guide (french) |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | 4449264 | Easy Set Guide (english) |
|
- | |||||
| 1 | W10162183 | Use & Care Guide |
|
- | |||||
| 2 | W10144984 | Trim, Side (left) |
|
$ 133.34 | |||||
| 2 | WPW10144983 | Trim, Side (right) (Replaces: W10144983) |
|
$ 141.22 | |||||
| 3 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 103.82 | ||||
| 3 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 107.47 | ||||
| 4 | W10105790 | Bumper, Door |
|
$ 6.35 | |||||
| 6 | WP694091 | Screw (Replaces: 694091) |
|
$ 6.47 | |||||
| 7 | 8301784 | Top, Chassis |
|
- | |||||
| 8 | W10145009 | Deflector, Vent |
|
$ 69.95 | |||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 104.97 | |||||
| 10 | W10169756 | Lens, Light |
|
$ 36.16 | |||||
| 11 | WPW10307114 | Assembly, Oven Light (Replaces: W10009940) |
|
Immediately | $ 99.44 | ||||
| 12 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 42.64 | ||||
| 14 | W10115832 | Frame, Front |
|
- | |||||
| 15 | W11676901 | Gasket, Door (Replaces: 8300142) |
|
$ 63.24 | |||||
| 16 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 6.47 | |||||
| 17 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 18 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 19 | 8300184 | Support, Insulation |
|
- | |||||
| 20 | 4451605 | Cap, Spacer |
|
$ 38.55 | |||||
| 21 | 814372 | Rail, Side (left) (Replaces: 4450580) |
|
$ 108.63 | |||||
| 21 | 814371 | Rail, Side (right) (Replaces: 4450579) |
|
$ 109.53 | |||||
| 22 | WP9760889 | Latch, Motorized (Replaces: 9760888) |
|
Immediately | $ 295.79 | ||||
| 23 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 24 | 4452152 | Bracket, Mounting |
|
$ 30.15 | |||||
| 25 | W10782197 | Side, Chassis (Replaces: 4455641) |
|
$ 129.16 | |||||
| 26 | 8302199 | Back, Chassis |
|
- | |||||
| 28 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 6.98 | ||||
| 29 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 86.25 | ||||
| 30 | 8302339 | Bracket, Deflector (left) |
|
- | |||||
| 30 | 8302338 | Bracket, Deflector (right) |
|
- | |||||
| 31 | WP3400805 | Screw (Replaces: 3400805) |
|
$ 6.47 | |||||
| 32 | 4449748 | Screw |
|
$ 12.20 | |||||
| 33 | 8301780 | Deflector, Vent |
|
- | |||||
| 34 | WP4448444 | Grommet, Mounting Rail (Replaces: 4448444) |
|
$ 6.73 | |||||
| 35 | WP9759243 | Thermostat (Replaces: 9759243) |
|
Immediately | $ 49.90 | ||||
| 36 | 8302327 | Base, Chassis |
|
- | |||||
| 37 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 7.97 | |||||
| 38 | WP4451747 | Cover-back (Replaces: 4451747) |
|
$ 128.63 | |||||
| 39 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 40 | 4449845 | Support, Bracket |
|
- | |||||
| 41 | W10194389 | Trim, Bottom |
|
- | |||||
| 42 | WP4450118 | Nut (Replaces: 4450118) |
|
$ 7.16 | |||||
| 8300158 | Insulation, Wrap |
|
- | ||||||
| 8300159 | Insulation, Back |
|
- |
