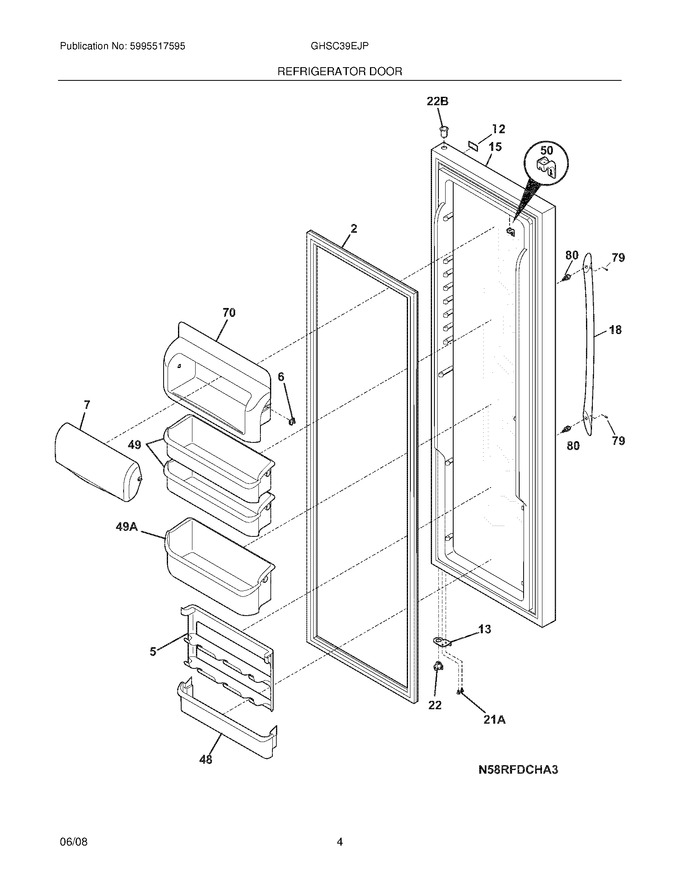

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241516102		Rack-can				$ 101.54
6	241515901		Lug-dairy Compartment				$ 42.47
7	241515606		Door-dairy   (Replaces: 241515601)				$ 40.96
12	241808601		Label-nameplate				$ 12.69
13	240581905		Door Stop,black ,ref				$ 60.25
15	241534585		Door-refr,black ,complete Assy				$ 389.01
18	240536810		Handle-door,black				$ 129.00
22	240328203		Bearing-hinge,black ,closer			Immediately	$ 27.23
48	241511701		Bin-door,gallon ,ref ,w/trim   (Replaces: 241808207)			Immediately	$ 67.21
49	241505301		Bin-door,2 Liter   (Replaces: 241808213)			Immediately	$ 76.40
50	241508401		Cover-magnet				$ 88.93
70	241515801		Compartment-dairy,removable				$ 177.89
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
22B	240328404		Bearing-hinge,black ,upper				$ 22.87
49A	241505501		Bin-door,gallon ,w/trim   (Replaces: 241808210)			Immediately	$ 99.03
49A	241780001		Liner,bin ,gallon				$ 63.74
F2	241510207		Gasket-refr Door,black ,magnetic   (Replaces: 241510203)			Immediately	$ 97.14
NI	241779901		Liner,bin ,2 Liter				$ 33.84

    View Diagram in Separate Window       Print Part List
