Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 25-7702 Speedclip, End Cap To Ctrl Pnl Appelez-nous -
1 35-2178 Control Panel Appelez-nous -
1 25-7649 Screw Appelez-nous -
2 35-2487 Cap, End (rt) C Appelez-nous -
2 53-0265 Lh Endcap Appelez-nous -
2 53-0264 Rh Endcap Appelez-nous -
2 35-2488 Cap, End (lt) C Appelez-nous -
3 25-7697 Screw Appelez-nous -
3 25-7851 Speedclip, End Cap To Top Appelez-nous -
3 34-9487 Plate, Reinforcement Appelez-nous -
4 25-7852 Speedclip, Rr Shld To End Cap Appelez-nous -
4 WP33002917 Screw   (Replaces: 25-7435) In-Stock Immediately $ 6.90

5 53-0278 Trim, End Cap (lt) Appelez-nous -
5 53-0277 Trim, End Cap (rt) Appelez-nous -
6 25-7760 Screw Appelez-nous -
7 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

8 25-7702 Speedclip, End Cap To Ctrl Pnl Appelez-nous -
9 53-1676 Shield, Control C Appelez-nous -
9 53-0365 Control Shield Appelez-nous -
10 25-7853 Retaining Ring Appelez-nous -
10 53-0268 Rear Shield Appelez-nous -
10 35-2688 Shield, Control Panel (rear) C Appelez-nous -
10 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

10 WP12990527 Screw, Sems   (Replaces: 25-3457) In-Stock Immediately $ 7.15

11 35-2748CP Timer   (Replaces: 35-2211) Appelez-nous -
12 25-0205 Screw Appelez-nous -
13 35-2255 Skirt & Ring Assy Appelez-nous -
14 35-2188 Knob, Timer Appelez-nous -
15 35-0114 Temp Switch Appelez-nous -
15 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

16 35-2186 Knob, Selector Appelez-nous -
17 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

17 35-2193 Switch, Rotary Speed Appelez-nous -
18 33-8304 Manual, Use & Care Appelez-nous -
18 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

18 WP21001554 Pressure Switch   (Replaces: 35-2145) Special Order $ 143.59


    View Diagram in Separate Window     Print Icon   Print Part List

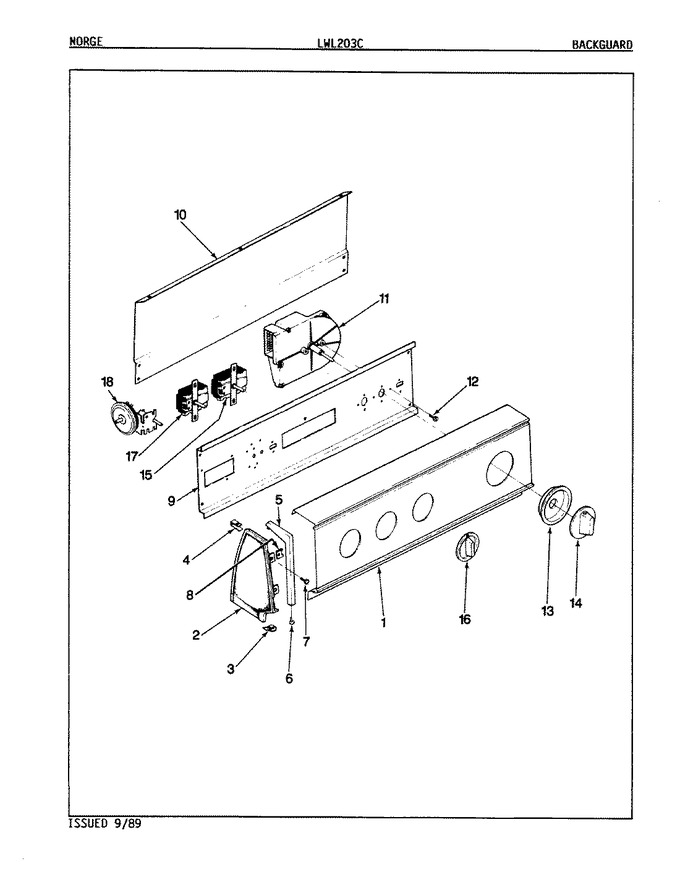

Diagram for LWL203WC
