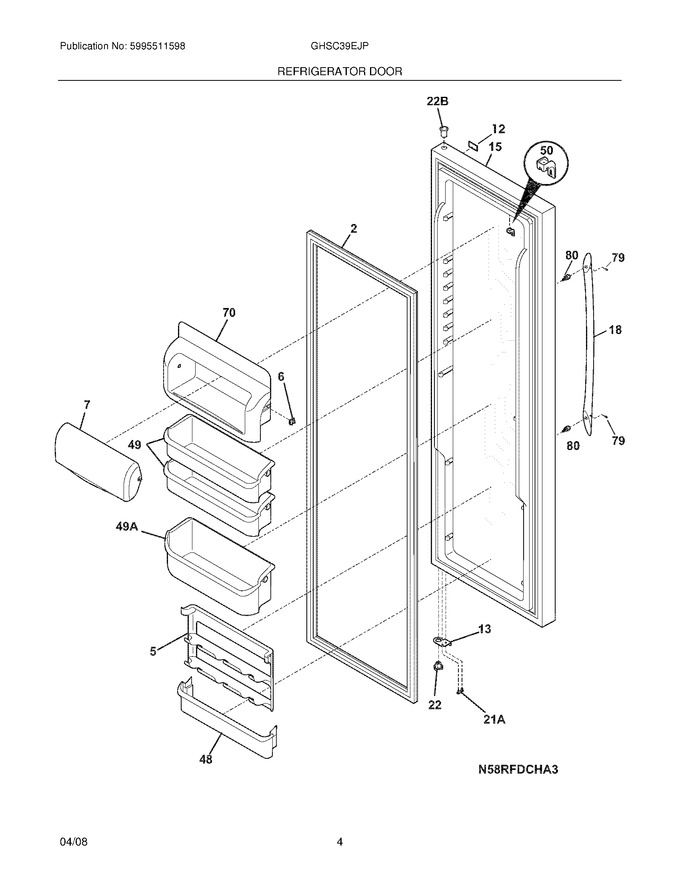

05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241516102		Rack-can				$ 101.54
6	241515901		Lug-dairy Compartment				$ 42.47
7	241515606		Door-dairy   (Replaces: 241515601)				$ 40.96
12	241808601		Label-nameplate				$ 12.69
13	240581901		Door Stop,white ,refr				$ 43.95
15	241534584		Door-refr,white ,complete Assy				$ 382.59
18	240536809		Handle-door,white				$ 139.30
22	240328201		Bearing-hinge(ref),closer			Immediately	$ 17.72
48	241511701		Bin-door,gallon ,ref ,w/trim   (Replaces: 241808207)			Immediately	$ 67.21
49	241505301		Bin-door,2 Liter   (Replaces: 241808213)			Immediately	$ 76.40
50	241508401		Cover-magnet				$ 88.93
70	241515801		Compartment-dairy,removable				$ 177.89
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
22B	240328402		Bearing-hinge,natural ,upper				$ 19.85
49A	241505501		Bin-door,gallon ,w/trim   (Replaces: 241808210)			Immediately	$ 99.03
49A	241780001		Liner,bin ,gallon				$ 63.74
F2	241510201		Gasket-refr Door,white ,magnetic			Immediately	$ 222.14
NI	241779901		Liner,bin ,2 Liter				$ 33.84
