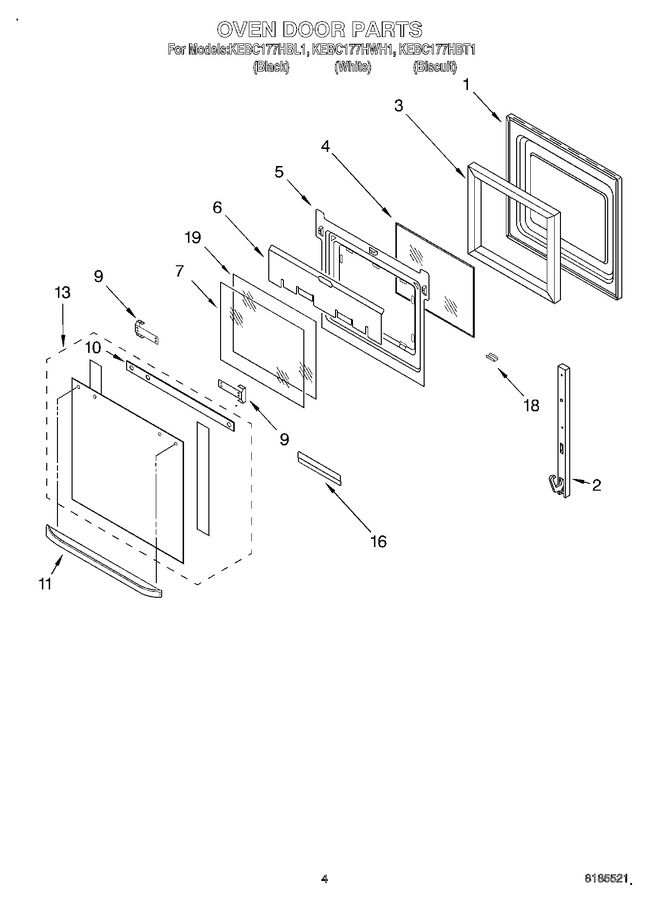

03 - Oven Door


04 - Internal Oven


05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451718		Door Liner		Appelez-nous	-
2	WP4455525		Hinge, Door   (Replaces: 4454948)			Immediately	$ 69.96
2	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
3	4451721		Insulation, Door				$ 37.62
4	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 151.75
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
5	4451670		Retainer, Glass		Appelez-nous	-
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
6	4450361		Shield, Heat		Appelez-nous	-
7	WP4449257		Glass, Inner   (Replaces: 4449257)			Immediately	$ 178.55
9	W10276642		Bracket, Handle (screw)   (Replaces: 4451040)				$ 5.49
9	4452960		Bracket, Handle (left Hand)		Appelez-nous	-
9	4452959		Bracket, Handle (right Hand)		Appelez-nous	-
10	4452325		Seal, Top				$ 32.70
11	4452500		Handle (black)		Appelez-nous	-
11	4452870		Handle (biscuit)		Appelez-nous	-
11	4452501		Handle (white)		Appelez-nous	-
13	4455393		Assy, Door Glass (black)		Appelez-nous	-
13	4455394		Door Glass, Assy (biscuit)		Appelez-nous	-
13	4455392		Assy, Door Glass (white)		Appelez-nous	-
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
16	4451668		Retainer, Glass		Appelez-nous	-
18	4450864		Clip, Retainer (white)		Appelez-nous	-
18	4452119		Clip, Retainer (biscuit)		Appelez-nous	-
18	4450863		Clip, Retainer (black)		Appelez-nous	-
19	4455256		Glass, Inner		Appelez-nous	-
