Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 25-7702 Speedclip, End Cap To Ctrl Pnl G Appelez-nous -
1 25-7793 Screw G Appelez-nous -
1 35-2178 Control Panel G Appelez-nous -
2 35-2487 Cap, End (rt) G Appelez-nous -
2 35-2488 Cap, End (lt) G Appelez-nous -
3 25-7697 Screw G Appelez-nous -
3 25-7851 Speedclip, End Cap To Top G Appelez-nous -
3 34-9487 Plate, Reinforcement G Appelez-nous -
4 25-7852 Speedclip, Rr Shld To End Cap G Appelez-nous -
4 WP33002917 Screw   (Replaces: 25-7435) G In-Stock Immediately $ 6.90

5 53-0278 Trim, End Cap (lt) G Appelez-nous -
5 53-0277 Trim, End Cap (rt) G Appelez-nous -
6 25-7760 Screw G Appelez-nous -
7 WP90767 Screw   (Replaces: 25-3092) G In-Stock Immediately $ 7.04

8 25-7702 Speedclip, End Cap To Ctrl Pnl G Appelez-nous -
9 53-1676 Shield, Control G Appelez-nous -
10 WP12990527 Screw, Sems   (Replaces: 25-3457) G In-Stock Immediately $ 7.15

10 WP90767 Screw   (Replaces: 25-3092) G In-Stock Immediately $ 7.04

10 25-7853 Retaining Ring G Appelez-nous -
10 35-2688 Shield, Control Panel (rear) G Appelez-nous -
11 35-2325 Timer G Appelez-nous -
12 25-0205 Screw G Appelez-nous -
13 35-2255 Skirt & Ring Assy G Appelez-nous -
14 35-2485 Knob, Timer G Appelez-nous -
15 35-0114 Temp Switch G Appelez-nous -
15 WP90767 Screw   (Replaces: 25-3092) G In-Stock Immediately $ 7.04

16 35-2186 Knob, Selector G Appelez-nous -
17 35-2193 Switch, Rotary Speed G Appelez-nous -
17 WP90767 Screw   (Replaces: 25-3092) G In-Stock Immediately $ 7.04

18 35-0782 Pressure Switch G Appelez-nous -
18 WP90767 Screw   (Replaces: 25-3092) G In-Stock Immediately $ 7.04

18 WP21001554 Switch, Pressure   (Replaces: 35-3283) H Special Order $ 143.59

19 35-3091 Manual, Use & Care G Appelez-nous -

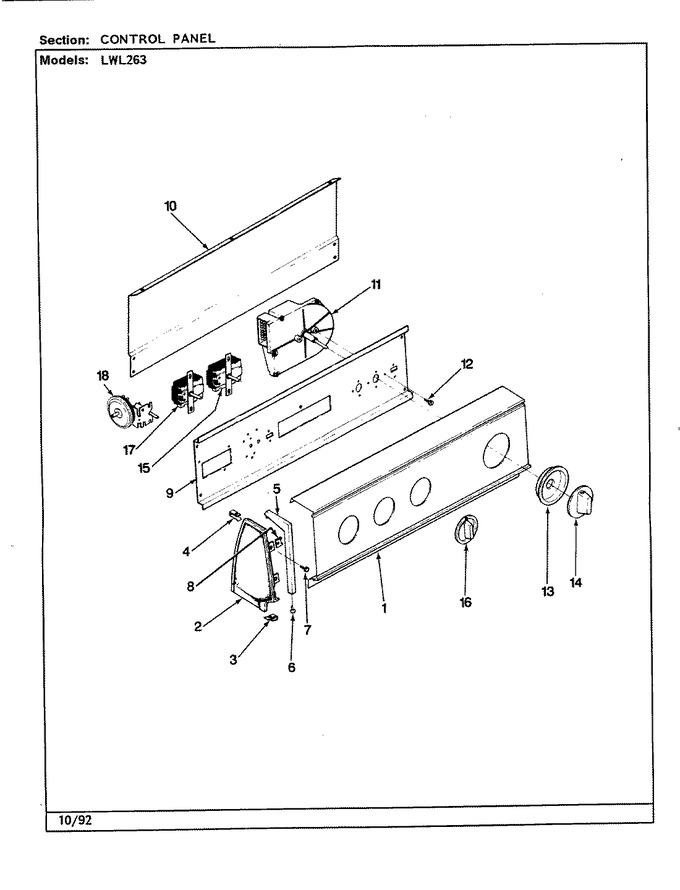

    View Diagram in Separate Window     Print Icon   Print Part List
