Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 35-2026 Lid (wht) (door) G Special Order $ 168.05

2 25-7436 Nylite Washer G Appelez-nous -
2 WP43-0057 Actuator, Door Switch   (Replaces: 43-0057) G Special Order $ 73.22

3 25-7438 Screw G Appelez-nous -
4 25-7086 Washer G Appelez-nous -
4 WP35-2045 Pin, Hinge   (Replaces: 35-2045) G In-Stock Immediately $ 18.03

5 WP25-7893 Screw   (Replaces: 25-7893) G Special Order $ 7.14

6 WP35-2044 Hinge, Lid   (Replaces: 35-2044) G In-Stock Immediately $ 7.52

7 35-0581 Bumper, Door (lid) G Appelez-nous -
8 35-2064 Bushing, Insulating G Appelez-nous -
8 35-2063 Bushing, Insulator G Appelez-nous -
9 25-7463 Screw G Appelez-nous -
10 25-7437 Screw G Appelez-nous -
11 35-2814 Switch, Lid G Appelez-nous -
12 35-2795 Bracket, Lid Switch G Appelez-nous -
13 25-7878 Clip G Appelez-nous -
14 35-2805 Door Switch Lever (ss) G Appelez-nous -
15 35-2739 Top, Cabinet (wht) G Appelez-nous -
16 33-9906 Body, Bleach Dispenser G Appelez-nous -
17 35-0680 Cord, Power G Appelez-nous -
18 WP25-7893 Screw   (Replaces: 25-7893) G Special Order $ 7.14

19 35-2846 Hinge   (Replaces: 33-7450) G Special Order $ 22.94

20 33-0930 Pad, Top Hinge G Appelez-nous -
21 WP596669 Clamp, Pressure Switch Hose   (Replaces: 25-7796) G In-Stock Immediately $ 7.56

22 53-0643 Pin, Locator G Appelez-nous -
23 WP25-7220 Clip, Cabinet Top   (Replaces: 25-7220) G Special Order $ 10.77

24 WP3400029 Nut, Locator Pin   (Replaces: 25-0224) G In-Stock Immediately $ 6.98

25 53-0643 Pin, Locator G Appelez-nous -
26 35-2084 Panel, Front (wht) G Appelez-nous -
27 53-0120 Clip, Front Panel G Special Order $ 11.32

28 33-2653 Bumper, Cabinet G Appelez-nous -
29 35-2106 Cabinet Assy. (wht) G Appelez-nous -
30 33-2653 Bumper, Cabinet G Appelez-nous -
31 35-2108 Shield,rear(nla,order Cab Kit) G Appelez-nous -
32 WP681414 Screw   (Replaces: 25-7733) G In-Stock Immediately $ 7.07


    View Diagram in Separate Window     Print Icon   Print Part List

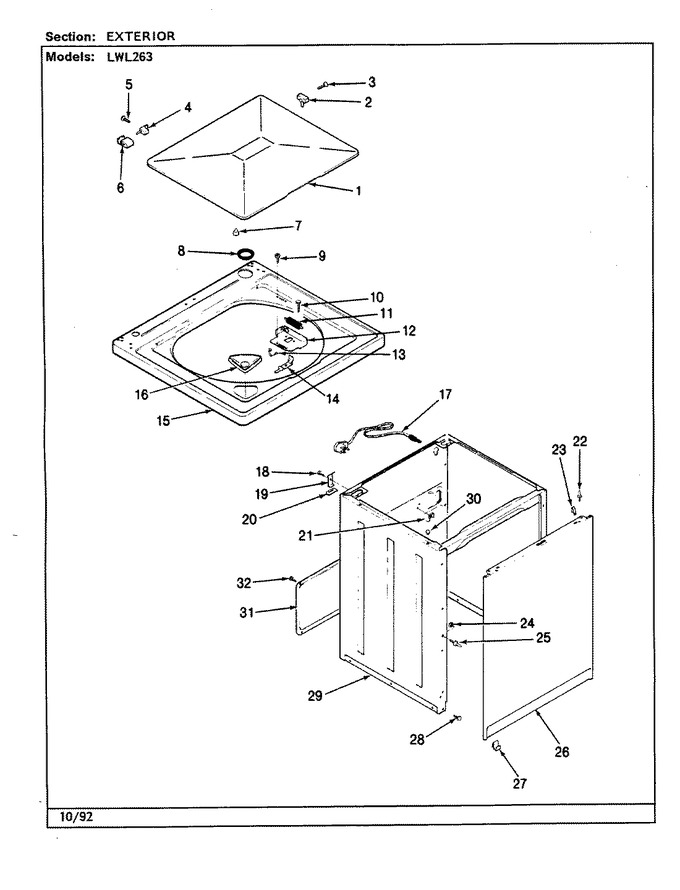

Diagram for LWL263W
