Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 25-7941 ``o`` Ring H Special Order $ 5.83

2 35-2835 Bearing, Centerpost H Appelez-nous -
3 35-2792 Centerpost H Appelez-nous -
4 35-2983 Centerpost Assy. H Appelez-nous -
4 33-6790 Bearing, Agitator H Appelez-nous -
5 35-2906 Seal, Centerpost Bottom H Appelez-nous -
6 35-2791 Nut, Spin Tube H Appelez-nous -
7 25-7938 ``o`` Ring, Basket Drive Hub H Appelez-nous -
7 35-2715 Basket Drive Hub Assy H Appelez-nous -
8 35-3647 Hub, Basket Drive M Appelez-nous -
9 35-2974 Tub Seal/hub Assy (ht Trans) H Special Order $ 36.14

10 35-2716 Housing, Bearing & Seal H Appelez-nous -
11 35-2972 Bearing & Seal Housing Assy. H Appelez-nous -
11 35-2205 Bearing, Spin H Special Order $ 40.16

12 25-7949 Ring, Retaining (ag. Shaft) H Appelez-nous -
13 25-7057 Washer, Flat H Appelez-nous -
14 25-7051 Washer, Flat H Appelez-nous -
15 25-7895 Screw, Susp Hsg To Lwr Brg Asy H Appelez-nous -
16 35-2981 Cover, Reinforcement H Appelez-nous -
17 25-7895 Screw, Susp Hsg To Lwr Brg Asy H Appelez-nous -
18 35-2621 Plug, Oil Fill H Appelez-nous -
19 25-7926 Screw, Cover To Trans. Housing H Appelez-nous -
20 35-2971 Transmission Cover Assy. H Appelez-nous -
20 35-2620 Cover, Transmission H Appelez-nous -
21 35-2903 Counterweight H Appelez-nous -
22 35-1030 Gasket, Transmission Housing H Appelez-nous -
23 25-7722 ``o`` Ring, Drive Tube H Appelez-nous -
24 35-3702 Drive Tube Assy. M Appelez-nous -
24 35-2708 Drive Tube Assy H Appelez-nous -
25 35-3036 Linkage Assy H Appelez-nous -
25 35-3804 Linkage Assy. M Appelez-nous -
26 LA-2176 Clutch Assy. H Appelez-nous -
27 25-7847 Ring, Retaining (clutch Assy.) H Appelez-nous -
28 25-7416 Washer, Flat H Appelez-nous -
28 25-7415 Washer, Flat H Appelez-nous -
29 33-6114 Spring H Appelez-nous -
30 35-2001 Pinion, Drive H Appelez-nous -
31 33-3195 Spring H Appelez-nous -
32 35-2692 Drive Shaft & Hub Assy. H Appelez-nous -
33 25-7274 Washer, Steel H Appelez-nous -
34 35-2817 Washer, Nylon H Appelez-nous -
35 35-2070 Washer, Steel W/tabs H Appelez-nous -
36 25-7933 Ring, Retaining H Appelez-nous -
37 35-2527 Gear, Cluster H Appelez-nous -
38 35-2631 Gear, Crank H Appelez-nous -
39 35-2812 Housing, Transmission H Appelez-nous -
40 35-2010 Seal,transmission Housing(lip) H Appelez-nous -
41 35-2730 Bearing Assy. (lower) H Appelez-nous -
41 35-2973 Transmission Hsg Assy W/lwr Br H Appelez-nous -
42 35-3724 Support, Tub M Appelez-nous -
42 35-2732 Tub Support H Appelez-nous -
43 35-2798 Tub Brace H Appelez-nous -
44 25-7930 Screw 5/16-18x3/4 H Appelez-nous -
45 35-2015 Suspension Housing H Appelez-nous -
45 35-3698 Housing, Suspension M Appelez-nous -
46 35-2017 Retainer, Brake Spring H Special Order $ 5.85

47 35-2112 Spring, Brake H Appelez-nous -
48 35-2025 Plate, Reinforcement M Appelez-nous -
48 25-7930 Screw 5/16-18x3/4 H Appelez-nous -
49 25-7895 Screw, Susp Hsg To Lwr Brg Asy H Appelez-nous -
50 35-2948 Brake Rotor & Lining Assy H Appelez-nous -
51 WP21002026 Snubber   (Replaces: 35-2357) H In-Stock Immediately $ 9.68

52 35-2018 Stator, Brake H Appelez-nous -
53 25-7900 Sems H Appelez-nous -
54 W10124350 Not Required Part Or See Note H Appelez-nous -
55 W10124350 Not Required Part Or See Note H Appelez-nous -
56 W10124350 Not Required Part Or See Note H Appelez-nous -
57 W10124350 Not Required Part Or See Note H Appelez-nous -
58 W10124350 Not Required Part Or See Note H Appelez-nous -
59 12002213 Drive Pulley   (Replaces: 35-2683) H In-Stock Immediately $ 98.84

60 12002213 Cam, Lower   (Replaces: 35-2439) H In-Stock Immediately $ 98.84

61 35-2082 Washer,1.25odx.530idx.062 H Special Order $ 5.61

61 WP35-2132 Washer,1.25odx.530idx.032   (Replaces: 35-2132) H Special Order $ 0.65

62 WP25-7854 Ring, Retaining   (Replaces: 25-7854) H Special Order $ 10.68

63 35-2007 Cap, Dust H Appelez-nous -
64 LA-2175 Transmission Replacement Kit H Appelez-nous -
64 12002213 Thrust Bearing Kit   (Replaces: 12500036) H In-Stock Immediately $ 98.84

64 35-3748 Transmission Assy H Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

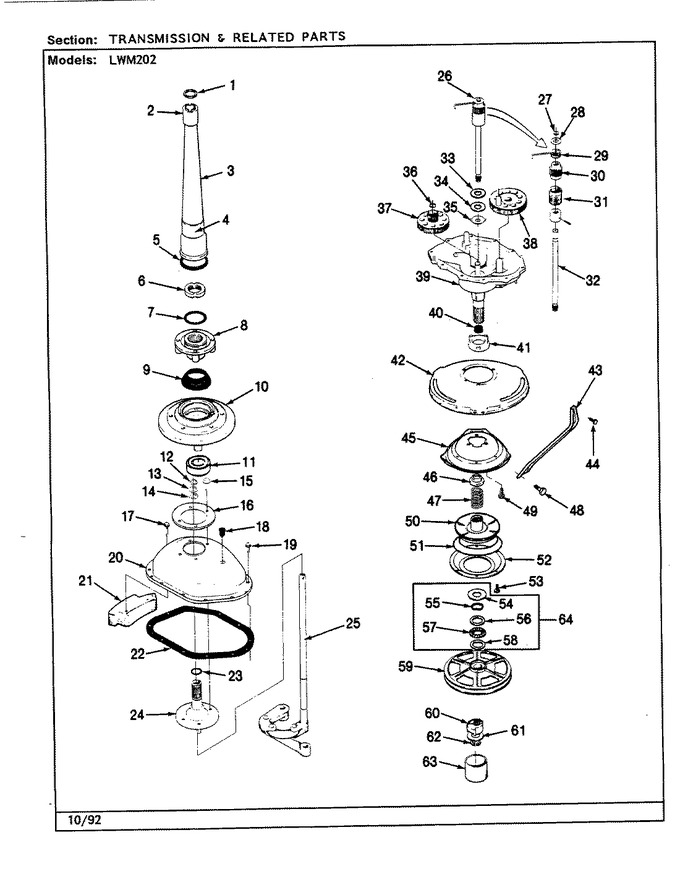

Diagram for LWM202
