SELECT A DIAGRAM

Diagram for 01 - Base & Drive (rev. A-d)
01 - Base & Drive (rev. A-d)

Diagram for 02 - Base & Drive (rev. E-j)
02 - Base & Drive (rev. E-j)

Diagram for 03 - Base & Drive (rev. K)
03 - Base & Drive (rev. K)

Diagram for 04 - Control Panel (rev. A-d)
04 - Control Panel (rev. A-d)

Diagram for 05 - Control Panel (rev. E-j)
05 - Control Panel (rev. E-j)

Diagram for 06 - Control Panel (rev. K)
06 - Control Panel (rev. K)

Diagram for 07 - Exterior (rev. E-j)
07 - Exterior (rev. E-j)

Diagram for 08 - Transmission & Related Parts (rev. A-d)
08 - Transmission & Related Parts (rev. A-d)

Diagram for 09 - Transmission & Related Parts (rev. E-j)
09 - Transmission & Related Parts (rev. E-j)

Diagram for 10 - Transmission & Related Parts (rev. K)
10 - Transmission & Related Parts (rev. K)

Diagram for 11 - Tub (rev. A-d)
11 - Tub (rev. A-d)

Diagram for 12 - Tub (rev. E-j)
12 - Tub (rev. E-j)

Diagram for 13 - Tub (rev. K)
13 - Tub (rev. K)

Diagram for 14 - Water Carrying & Pump Assy. (rev. A-d)
14 - Water Carrying & Pump Assy. (rev. A-d)

Diagram for 15 - Water Carrying (rev. E-j)
15 - Water Carrying (rev. E-j)

Diagram for 16 - Water Carrying (rev. K)
16 - Water Carrying (rev. K)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 35-2026 Lid (wht) (door) E Special Order $ 168.05

2 25-7436 Nylite Washer E Appelez-nous -
2 WP43-0057 Actuator, Door Switch   (Replaces: 43-0057) E Special Order $ 73.22

3 25-7438 Screw E Appelez-nous -
4 25-7086 Washer E Appelez-nous -
4 WP35-2045 Pin, Hinge   (Replaces: 35-2045) E In-Stock Immediately $ 18.03

5 WP25-7893 Screw   (Replaces: 25-7893) E Special Order $ 7.14

6 WP35-2044 Hinge, Lid   (Replaces: 35-2044) E In-Stock Immediately $ 7.52

7 35-0581 Bumper, Door (lid) E Appelez-nous -
8 35-2064 Bushing, Insulating E Appelez-nous -
8 35-2063 Bushing, Insulator E Appelez-nous -
9 25-7463 Screw E Appelez-nous -
10 25-7437 Screw E Appelez-nous -
11 35-2814 Switch, Lid E Appelez-nous -
12 35-2795 Bracket, Lid Switch E Appelez-nous -
13 25-7878 Clip E Appelez-nous -
14 35-2805 Door Switch Lever (ss) E Appelez-nous -
15 35-2028-24 Cabinet Top E Appelez-nous -
16 33-9906 Body, Bleach Dispenser E Appelez-nous -
17 35-0680 Cord, Power E Appelez-nous -
18 WP25-7893 Screw   (Replaces: 25-7893) E Special Order $ 7.14

19 35-2846 Hinge   (Replaces: 33-7450) E Special Order $ 22.94

20 33-0930 Pad, Top Hinge E Appelez-nous -
21 33-6099 Clamp E Appelez-nous -
22 53-0643 Pin, Locator E Appelez-nous -
23 WP25-7220 Clip, Cabinet Top   (Replaces: 25-7220) E Special Order $ 10.77

24 WP3400029 Nut, Locator Pin   (Replaces: 25-0224) E In-Stock Immediately $ 6.98

25 53-0643 Pin, Locator E Appelez-nous -
26 35-2084-24 Panel, Front (alm) E Appelez-nous -
27 53-0120 Clip, Front Panel E Special Order $ 11.32

28 33-2653 Bumper, Cabinet E Appelez-nous -
29 35-2106-24 Cabinet Assy. (alm) E Appelez-nous -
30 33-2653 Bumper, Cabinet E Appelez-nous -
31 35-2108 Shield,rear(nla,order Cab Kit) E Appelez-nous -
32 WP681414 Screw   (Replaces: 25-7733) E In-Stock Immediately $ 7.07


    View Diagram in Separate Window     Print Icon   Print Part List

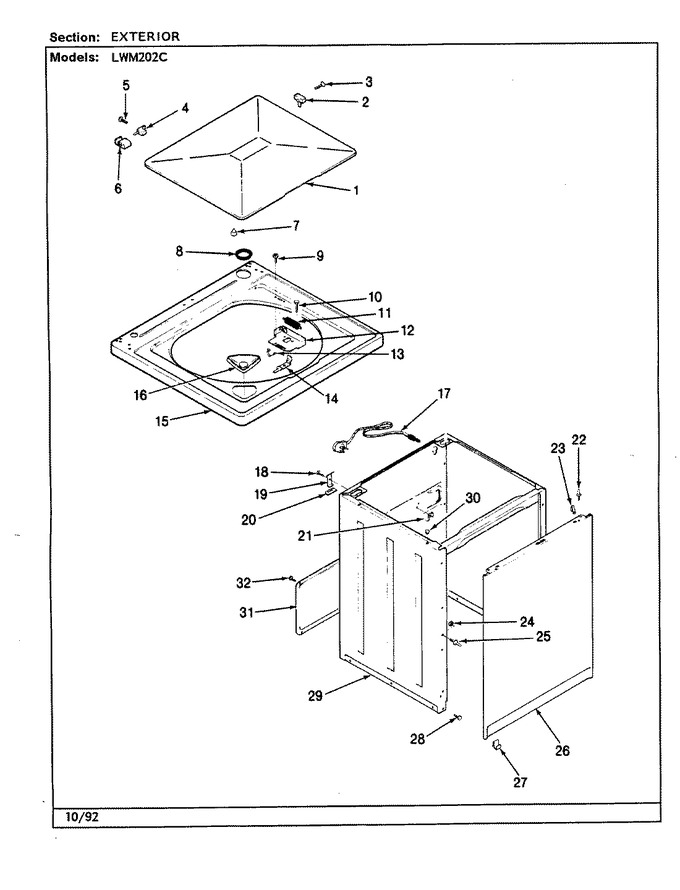

Diagram for LWM202AC
