Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 33-9893 Reinforcmt Covr E Appelez-nous -
2 33-9373 Oil Fill Plug E Appelez-nous -
3 25-7916 Bolt E Appelez-nous -
4 35-2620 Cover, Transmission G Appelez-nous -
4 33-4286N Transm Cvr Kit E Appelez-nous -
5 35-2642 Counterweight G Appelez-nous -
5 35-2130 Counter Weight E Appelez-nous -
6 35-1030 Gasket, Transmission Housing E Appelez-nous -
7 35-2654 Drive Tube Assy G Appelez-nous -
7 33-8763 Drive Hub & Brg E Appelez-nous -
8 25-7847 Ring, Retaining (clutch Assy.) E Appelez-nous -
9 25-7416 Washer, Flat E Appelez-nous -
10 33-6114 Spring E Appelez-nous -
11 35-2001 Pinion, Drive E Appelez-nous -
12 33-3195 Spring E Appelez-nous -
13 35-2116 Drive Shaft & Hub Assy E Appelez-nous -
13 LA-2005 Clutch Assy Kit E Appelez-nous -
14 25-7091 Thrust Washer E Appelez-nous -
15 35-2043 Crank Gear E Appelez-nous -
15 35-2631 Gear, Crank G Appelez-nous -
16 35-2070 Washer, Steel W/tabs E Appelez-nous -
16 35-2462 Thrust Washer E Appelez-nous -
16 25-7274 Washer, Steel E Appelez-nous -
17 25-7853 Retaining Ring E Appelez-nous -
18 35-2013 Cluster Gear E Appelez-nous -
18 35-2527 Gear, Cluster G Appelez-nous -
19 35-2640 Transmission Housing G Appelez-nous -
19 35-2012 Transmission Housing Assy E Appelez-nous -
20 35-2010 Seal,transmission Housing(lip) E Appelez-nous -
21 35-2111 Housing & Bearing Assy E Appelez-nous -
22 35-0628 Linkage Asm E Appelez-nous -
22 35-2637 Linkage Assy G Appelez-nous -
23 35-2059 Housing, W/o Bearing & Seal E Appelez-nous -
24 35-2205 Bearing, Spin E Special Order $ 40.16

25 25-7849 Retaining Ring E Appelez-nous -
26 33-7224N Tub Seal Asm E Special Order $ 33.33

27 33-9987 Basket Hub Asm E Appelez-nous -
28 35-2061 Gasket, Tub To Housing E Appelez-nous -
29 25-7722 ``o`` Ring, Drive Tube E Appelez-nous -
30 33-9507 Locknut Assy E Appelez-nous -
31 25-7120 Set Screw E Appelez-nous -
32 25-7848 Retaining Ring E Appelez-nous -
33 33-8718 Gasket E Appelez-nous -
34 35-0930 Gasket E Appelez-nous -
35 33-6790 Bearing, Agitator E Appelez-nous -
36 33-4283N Centerpost Kit E Appelez-nous -
37 33-7806N Seal Assembly E Appelez-nous -
38 33-9729 Drive Block Asm E Appelez-nous -
39 25-7378 Set Screw E Appelez-nous -
40 33-6817 Stud E Appelez-nous -
41 35-2060 Seal, Tub To Housing E Appelez-nous -
42 25-7359 Screw E Appelez-nous -
43 25-7848 Retaining Ring E Appelez-nous -
44 25-7057 Washer, Flat E Appelez-nous -
45 25-7722 ``o`` Ring, Drive Tube E Appelez-nous -
46 LA-2001 Transmission Replacement Kit E Appelez-nous -
46 25-7316 Flat Washer E Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

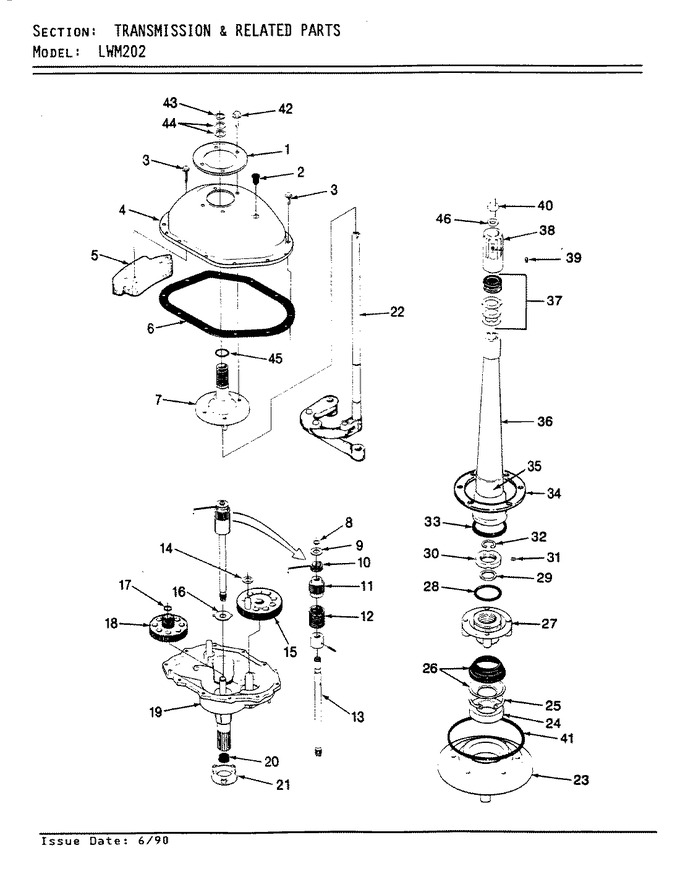

Diagram for LWM202H
