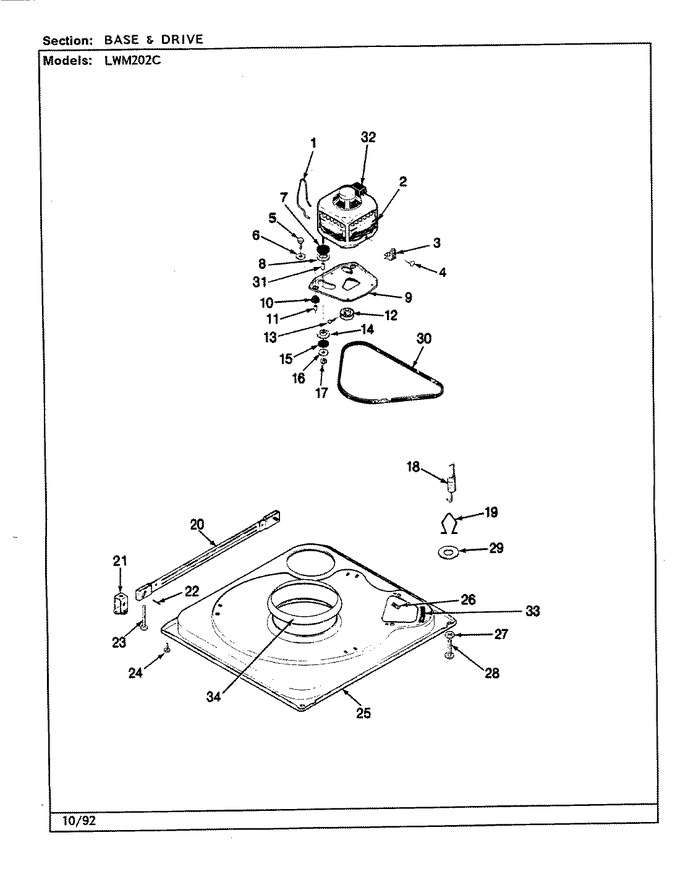

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	35-0235		Spring, Motor Pivot	E	Appelez-nous	-
2	LA-2002		Motor Kit	E	Appelez-nous	-
2	35-2030		Motor	E	Appelez-nous	-
3	33-9945		Slide, Foot	E	Appelez-nous	-
4	WP308544		Screw Purchase   (Replaces: 25-7418)	E		Immediately	$ 6.98
5	25-7833		Screw	E	Appelez-nous	-
6	25-7834		Washer	E	Appelez-nous	-
7	33-9946		Isolator, Motor	E			$ 32.40
8	33-9944		Washer	E	Appelez-nous	-
9	35-2810		Plate, Motor	E	Appelez-nous	-
10	WP35-3646		Isolator, Motor Plate   (Replaces: 33-9941)	E			$ 6.69
11	25-7831		Spacer	E			$ 8.04
12	W10143344		Pulley, Motor (60hz)   (Replaces: 35-2124)	E			$ 112.73
13	25-7117		Set Screw	E	Appelez-nous	-
14	33-9943		Motor Slide	E	Appelez-nous	-
15	33-9967		Washer, Motor Isolator	E			$ 5.27
16	25-7047		Washer, Flat	E			$ 30.39
17	WPY707702		Nut, Motor Plate Asy To Motor   (Replaces: 25-7325)	E		Immediately	$ 6.26
18	35-2681		Spring, Suspension	E	Appelez-nous	-
19	35-2976		Hook, Suspension Spring	E	Appelez-nous	-
20	35-2049		Bar, Stabilizer (with Guide)	E	Appelez-nous	-
21	35-2046		Bracket, Stabilizer	E			$ 39.94
22	35-2052		Pin, Stabilizer	E			$ 6.02
23	WP22004469		Foot, Self Stabilizer   (Replaces: 35-2050)	E			$ 14.52
24	35-2039		Pad, Foot	E	Appelez-nous	-
24	WP489483		Screw, No.10 Torq Limiting   (Replaces: 25-7828)	E			$ 9.78
25	35-2984		Base	E	Appelez-nous	-
26	25-7838		Speednut	E	Appelez-nous	-
27	25-7915		Hex Nut	E	Appelez-nous	-
28	35-0837		Pad, Front Foot	E	Appelez-nous	-
28	35-0772		Foot, Front	E	Appelez-nous	-
29	Y25-7951		Washer, Suspension Hook	E	Appelez-nous	-
30	WP21352320		Belt, Drive Pulley   (Replaces: 35-2320)	E		Immediately	$ 19.29
31	25-7830		Spacer	E			$ 8.39
32	33-9765		Switch, Motor	E	Appelez-nous	-
33	35-2065		Pad, Motor Plate	E	Appelez-nous	-
34	WP21002026		Snubber   (Replaces: 35-2357)	E		Immediately	$ 9.68
