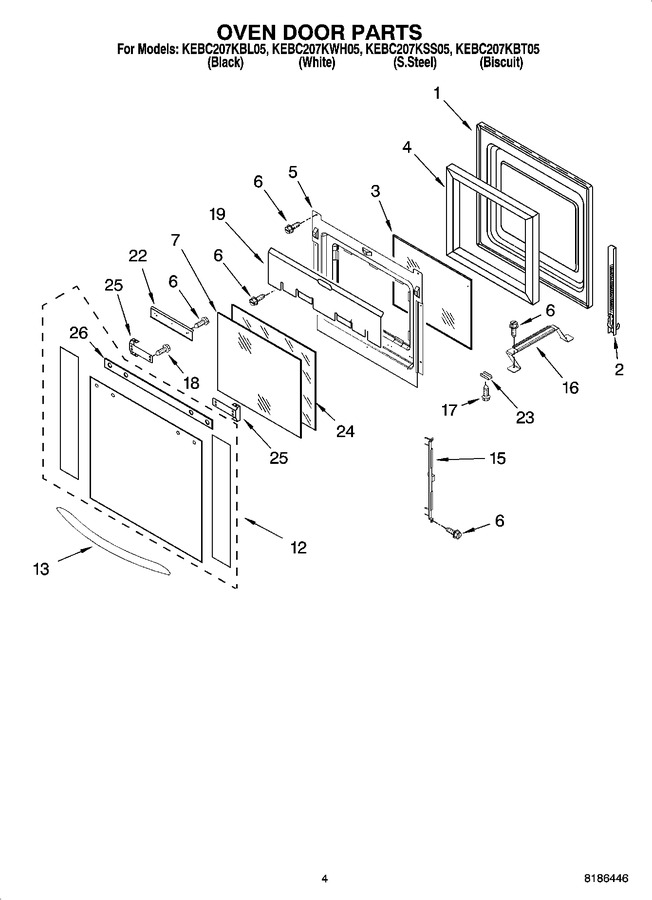

03 - Oven Door Parts
04 - Internal Oven Parts
05 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9759413 | Liner, Door (Replaces: 9759413) |
|
$ 317.54 | |||||
| 2 | WP9760575 | Hinge, Door (r.side (clear)) (Replaces: 9760575) |
|
Immediately | $ 58.11 | ||||
| 2 | WP9760578 | Hinge, Door (l.side (yellow)) (Replaces: 9760578) |
|
Immediately | $ 98.96 | ||||
| 2 | WP9760577 | Hinge, Door (r.side (yellow)) (Replaces: 9760577) |
|
Immediately | $ 99.89 | ||||
| 2 | WP9760576 | Hinge, Door (l.side (clear) (below Hinges Are Used On S.steel Models Only)) (Replaces: 9760576) |
|
Immediately | $ 50.81 | ||||
| 3 | WP4449259 | Glass, Inner (Replaces: 4449259) |
|
$ 182.86 | |||||
| 4 | WP4451722 | Insulation, Door (Replaces: 4451722) |
|
$ 162.66 | |||||
| 5 | WP4457132 | Retainer, Glass (Replaces: 4457132) |
|
$ 275.13 | |||||
| 6 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 7 | WP9759225 | Glass, Inner (Replaces: 9759225) |
|
Immediately | $ 174.78 | ||||
| 12 | 4455391 | Door Glass, Assy (black Model) |
|
- | |||||
| 12 | 4455395 | Door Glass, Assy (biscuit) |
|
- | |||||
| 12 | W10401225 | Door Glass, Assy (s.steel Model) (Replaces: 4452316) |
|
$ 289.44 | |||||
| 12 | 4455390 | Door Glass, Assy (white Model) |
|
- | |||||
| 13 | 4455851 | Door Handle (s.steel) |
|
- | |||||
| 13 | 4452502 | Door Handle (black) |
|
- | |||||
| 13 | 4452503 | Door Handle (white) |
|
- | |||||
| 13 | 4452871 | Door Handle (biscuit) |
|
- | |||||
| 15 | WP9759229 | Bracket (2nd Glass) (Replaces: 9759229) |
|
$ 160.71 | |||||
| 16 | 9759230 | Bracket (3rdglass) |
|
$ 36.30 | |||||
| 17 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 6.98 | ||||
| 18 | WPW10132940 | Screw (Replaces: 3196184) |
|
$ 8.50 | |||||
| 19 | 4457104 | Shield, Heat (Replaces: 4457103) |
|
$ 33.62 | |||||
| 22 | 4457114 | Shield, Heat-bottom |
|
$ 186.68 | |||||
| 23 | 4452119 | Retainer, Clip (biscuit) |
|
- | |||||
| 23 | 4450863 | Retainer, Clip (black) |
|
- | |||||
| 23 | 4450864 | Retainer, Clip (white) |
|
- | |||||
| 23 | 4451432 | Retainer, Clip (s.steel) |
|
- | |||||
| 24 | 9759228 | Glass, Inner |
|
$ 87.91 | |||||
| 25 | 4455804 | Bracket, Handle (left Hand) |
|
$ 25.95 | |||||
| 25 | 4455803 | Bracket, Handle (right Hand) |
|
$ 30.70 | |||||
| 26 | 4452326 | Seal, Door |
|
- |
